KEBA KeControl C5 - FE 560 Multi-protocol fieldbus expansion card

The Ethernet-based fieldbus card FE 560 can be connected on

the left of the KeControl C5 controllers using the Card Edge connector.

This allows the exchange and processing of process data between

the higher-level control and the KeControl C5 control.

All relevant protocols such as EtherCAT, EtherNet/IP and PROFINET are supported.

Technical specifications

Interfaces

KeControl C5 control module 1 x Card Edge connector

EtherCAT slave / EtherNet/IP adapter /

PROFINET IO-Device 2 x RJ45

Dimensions

Height 106 mm

Width 26.5 mm (when installed)

Depth 82.5 mm (snap-on height 77.5 mm)

Weight 95 g

Environmental conditions

Operating temperature 0 °C to +55 °C

Storage temperature-40 °C to +70 °C

Relative humidity 10 % to 95 % (non-condensing)

Vibration/shock resistance According to EN 61131-2

General data

Overvoltage category II

Protection class III according to EN 61010-2-201

Certification

CE 2014/30/EU and 2011/65/EU

UL UL 61010-1 and UL 61010-2-201

UKCA Conformity with relevant statutory requirements

Easy customization and extensibility

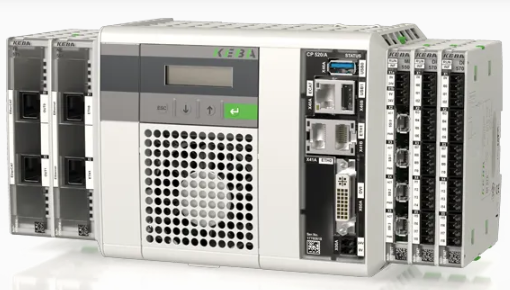

KeControl C5 stands out for its consistent modular design. The KeConnect C5 I/O modules that can

be connected on the right and the KeConnect C5 expansion cards that can plugged it on the left

provide customers with maximum flexibility in the configuration of their individual automation system.

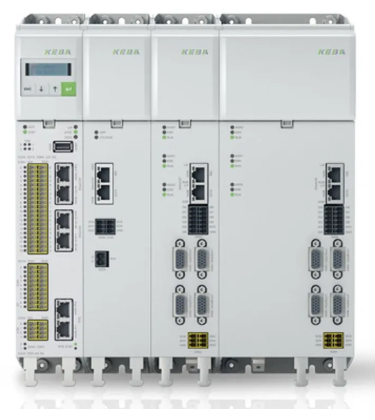

The KeDrive D3 drive system can be expanded with a controlled energy storage system.

Essentially, the system consists of an energy manager and an energy storage device.

Energy storage systems are used in a variety of applications. Whether for the storage

of energy generated regeneratively in the drive system or for buffering and the provision

of energy in peak load situations.

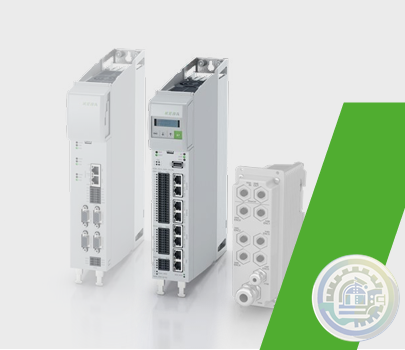

The KeSafe D3-DU product is the basis for a compre-hensive safety solution

for machines and/or robots. It is embedded in the compact KeSafe D3-DU

control and drive system and ensures the safe operation of machines and/or

robots in accordance with current standards and directives. KeSafe D3-DU is

field-tested, powerful and flexible and supports the efficient implementation

of a wide range of safety-related requirements and appli-cations in automation.
