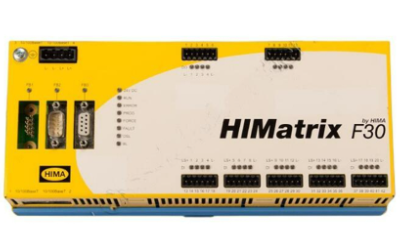

HIMATRIX F3001020 | HIMA Safety-Related Controller

HIQuad X is a programmable electronic safety system made by HIMA. The flexible and scalable

system family is a further development of HIQuad, which has been in use within various applications

in the process industries for over 30 years.

The modernization combines tried-and-tested HIQuad I/O technology with the high-availability and

high-performance HIMax system technology. HIQuad X is programmable with SILworX, the HIMA

engineering tool. HIQuad X safety systems are installed if restrictive safety requirements must be

fulfilled – without any compromises on system availability. The safety PLC can be used on a centralized

as well as decentralized basis. A huge variety of I/O modules can be used – including intrinsically

safe SIL 3 modules.

Communication Features of HIQuad X

A new communication module F-COM 01 comes included with HIQuad X. It supports the consistent

HIMA security concept. With HIQuad X, you have new opportunities as well as well-known existing

communication paths. Additionally, HIQuad X increases the availability of the communication to

redundant third-party systems.

Modernization Benefits

• Shorter turnaround times for modernization

• Less modernization effort compared to new installation

• No changes of I/O modules including field wiring

HIMA safety-related F2DO1601 remote I/O

HIMA F8650E CPU Module Brand

F8651X HIMA Analog Input Module
