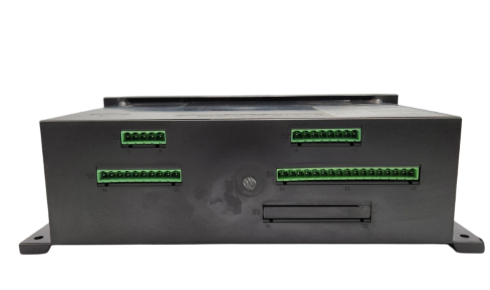

SAACKE F-GDSA 143303 Controller SHIPS UPS

SAACKE F-GDSA Burner Control Unit: Technical Overview and Key Features

The SAACKE F-GDSA Burner Control Unit is a specialized component designed

for industrial combustion systems, integrating advanced control, safety,

and efficiency functionalities. As part of SAACKE’s extensive portfolio of combustion

solutions, this unit exemplifies the brand’s expertise in industrial heat process

technologies, particularly in marine and offshore applications.

Key Technical Specifications

Model Designation: F-GDSA

Manufacturer: SAACKE GmbH, a German family-owned enterprise with over 130 years

of experience in combustion engineering.

Power Supply: Compatible with 220V/50Hz systems, ensuring seamless integration

into global industrial infrastructure.

Control Logic: Digital flame assessment technology enables adaptive fuel-to-air ratio

regulation, accommodating all fuel types without power restrictions.

Redundancy & Reliability:

Dual-channel flame sensor design (UV and IR) enhances fault tolerance.

Integrated ignition transformers (e.g., SAACKE 20050E, 220V/50Hz ZA) support uninterrupted operation.

Environmental Robustness:

Extended temperature range (-40°C to +55°C) for outdoor deployments.

IPMI v2.0-compliant module management controller (MMC) for remote diagnostics and maintenance.

Functional Applications

Marine & Offshore:

Critical for LNG carriers and offshore platforms, where the F-GDSA ensures safe

combustion of boil-off gas (BOG) in Gas Combustion Units (GCUs).

Rainproof design and corrosion-resistant materials extend component lifespan in

harsh maritime environments.

Industrial Heat Processes:

Controls combustion in thermal oil heaters, steam boilers, and drying systems.

Facilitates real-time adjustments to boiler loads, optimizing energy efficiency.

Safety Compliance:

Meets ATEX/IECEx standards for hazardous areas.

Integrates with SAACKE’s flame detectors (e.g., FLS09UV-5) for redundant fire safety.

Technical Innovations

Modular Architecture:

AMC.0-compliant mid-size processor board with 4GB ECC memory and Intel Core 2

Duo L7400 CPU (upgradable).

Two Gigabit Ethernet ports and SATA interfaces for networked control systems.

Smart Sensors:

MIR (Multi-Infrared) technology in flame detectors minimizes false alarms caused by solar radiation.

Displacement sensors in valve position feedback systems enable precise fuel flow regulation.
