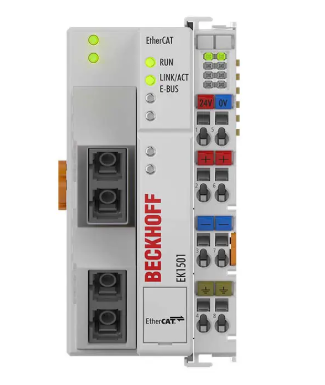

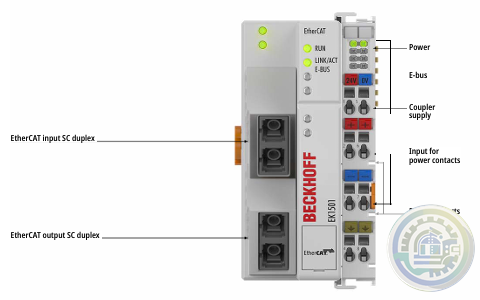

Beckhoff EK1501 | EtherCAT Coupler with ID switch, multi-mode fiber optic

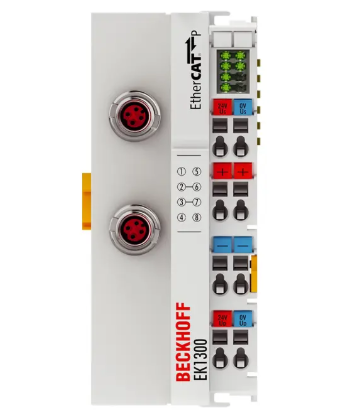

The EK1300 EtherCAT P coupler integrates the EtherCAT Terminals

into the EtherCAT P network. The coupler converts the passing

telegrams from Ethernet 100BASE-TX to E-bus signal representation.

A station consists of a coupler and any number of EtherCAT

Terminals that are automatically detected and individually displayed

in the process image

Special features:

• connection technology: 2 x P-coded M8 sockets

• power supply via EtherCAT P connection

• number of EtherCAT Terminals in the overall system: up to 65.535

The EK1300 has two P-coded M8 connections. The upper EtherCAT P

interface is used to connect the coupler to the network, the lower

P-coded M8 socket is used for optional continuation of the EtherCAT

P topology. In addition, the EK1322 EtherCAT P junction or the EK1310

EtherCAT P extension can be used for extending or creating a line or

star topology.

Since EtherCAT P integrates the power supply and the communication

on a single line, an additional power supply for the coupler via the

terminal points is no longer required. Depending on the application,

the system and sensor supply US or the peripheral voltage for actuators

UP can be bridged to the power contacts.

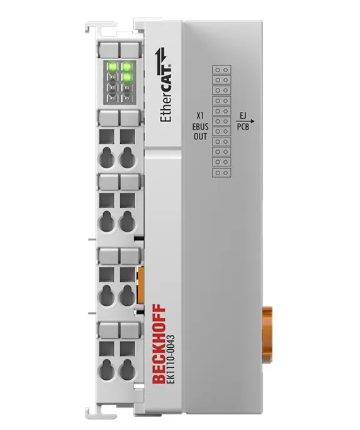

The EK1110-0043 EtherCAT EJ Coupler connects the compact Embedded

PCs from the CX series and the attached EtherCAT Terminals with the

EtherCAT plug-in modules on an application-specific circuit board (signal

distribution board).

The Embedded PC can be extended with EtherCAT Terminals that are not yet

available in the EJ system, for example. The preassembled subsystem, consisting

of a printed circuit board with mounted DIN rail, Embedded PC and EtherCAT

plug-in modules, can be tested in advance and subsequently integrated into

the machine assembly as a complete unit.

The EK1100-0008 EtherCAT Coupler is the link between the EtherCAT protocol

at fieldbus level and the EtherCAT Terminals. The coupler converts the passing

telegrams from Ethernet 100BASE-TX to E-bus signal representation. A station

consists of a coupler and any number of EtherCAT Terminals that are automatically

detected and individually displayed in the process image.
