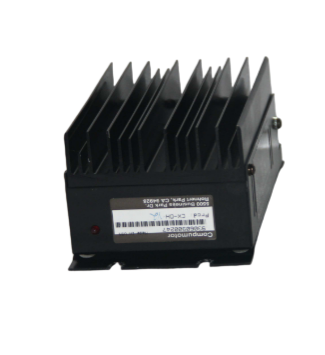

Parker CX-DH Industrial Control Module

APPLICATIONS

The VMM0604 is a general purpose controller for vehicles and other

applications where the stabilized voltage is less than or equal to 32 Vdc.

The unit has 6 inputs and 8 outputs and a CAN/J1939 communications port.

The module is fully compatible with other Parker Vansco multiplexer modules.

Features

The VMM0604 has 6 general purpose inputs that can be configured as active

high or active low signals.

In addition, they can be used to read analog voltages or as 6 frequency inputs

(2 AC-coupled and 4 DC-coupled).

The VMM0604 has 4 high voltage side outputs with a maximum PWM frequency

of 500 Hz and 4 low voltage side outputs with current detection.

The outputs can drive any type of vehicle load, including relays, solenoids, fans,

and more.

The system meets the stringent SAE J1455/EP455 environmental standards and

advances multiplexing technology with enhanced diagnostic capabilities and

Windows-based ladder logic programming.

The unit can be used alone or in conjunction with other multiplexing modules.

The multiplexing system is designed to simplify and reduce troubleshooting,

maintenance and documentation time for electrical systems.

The modules are self-programmable and feature LED status indicators that show

the status of inputs, outputs, power supplies, and network activity.

Reliability

The VMM0604 continuously monitors its eight outputs for fault information.

Faults detected include short circuits (ground or power), overcurrents, and open

loads. The VMM0604 allows the outputs to protect themselves electronically,

thus allowing the system to reduce the number of fuses.

In the event of a fault, the device will disable the output where the fault occurred.

The VMM0604 has 12 red LED diagnostic indicators that can be used to display

the status of inputs, outputs, power supplies, and the Controller Area Network

(CAN). On-board diagnostics allow for easy troubleshooting, and the auto-programmable

module saves time and maintenance costs by keeping module and program inventory

to a minimum. VMM users appreciate the module's rugged design as well as the

stringent industry environmental requirements and communications (SAE J1939)

standards. All of these features make the controller easy to integrate into any on-or

off-highway vehicle.
