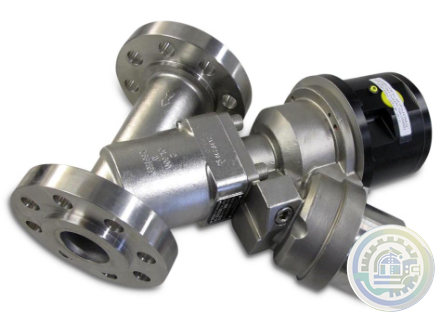

Meggitt C327845-11 Valve, 2″ Isolation Valve (24VCD) ATEX certified

Two-inch flange, 24 vdc, solenoid pilot actuated (SPA)

Meggitt’s two-inch poppet style gas flow shutoff valve is in use on a variety

of industrial gas turbines with millions of field operating hours. This product

continues to prove the high reliability of Meggitt design technology.

Key features

• Fail-safe closedlde-energized)

•  Closed positionindicating switch

•  100 msec fail-safeclosing time

• 200 msec opening time

• High temperaturepoppet seal

• For use on both DLE andSAC turbine engines

• Explosion proof design,CSA/UL certified for NECclass 1. division

1. groupsC and D,temp code T4.CE zone 1. EExd lIB.CE-ATEX and PED certified

• All stainless steel valveand yoke materials forNACE compliance

• No maintenance requiredunder normal conditions

VibroSmart distributed monitoring system

A VibroSmart ® distributed monitoring system

(DMS) is a network of small and economical

modules providing measurement,

communications or other functions that are

connected together in distributed, networked

measurement blocks in order to provide the

functionality normally offered by rack-based

machinery monitoring systems. A VibroSmart

system consists of one or more measurement

blocks, each containing up to sixteen VibroSmart

modules, a power supply and an optional host

computer running the VibroSight software.

A measurement block is a logical grouping of

VibroSmart modules that allows data such as

tachometer, trigger and alarm information to be

shared, for example, in order to monitor the same

machine. Measurement blocks are configured

using the VibroSight software.

Note: A VibroSmart system is limited to a

maximum of two VSI010 modules per

measurement block.
