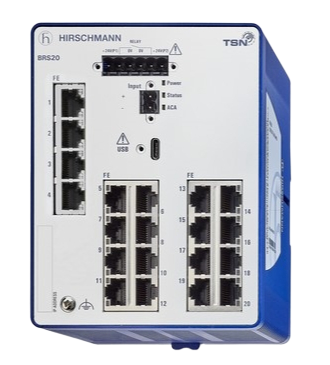

Hirschmann 942170-081 BRS20-20TX Ethernet Switch

Simplified managed switch configuration and management

The HiEOS software features essential, easy-to-use Layer 2

switching capabilities. The intuitive web interface enables

users to configure and monitor switches with no special IT

know-how required.

• The most essential features, plus high reliability, delivers

“set it and forget it” capability.

• Enhanced security with the most up-to-date software

architecture.

• Extremely easy configuration via an intuitive graphical

user interface.

Secure, easy-to-use, high reliability

• Enhanced security — including SSHv2 and multiple privilege

levels — delivering high reliability.

• Simple network management protocol (SNMP) device

management and traps that alert users if something is wrong.

• Diagnostics via remote monitoring (RMON), Syslog and others.

• Redundancy protocols, including ERPS*, RSTP and MRP Client.

• Interfaces, like CLI, SNMP, and JSON RPC, and the very

user-friendly Hirschmann web interface.

• Power over Ethernet (PoE) and PoE+ options.

The devices provide you with a large range of functions. Information

pertaining to these functions is found in the relevant operating software

manuals. These manuals are available as PDF files on the CD ROM

provided, or you can download them from the Internet on the Hirschmann

product pages (www.hirschmann.com).

The Hirschmann network components help you ensure continuous

communication across all levels of the company network.

Description of the device variants

The devices differ with regard to the number of interfaces and the media type

for connecting segments.

There is a variant of the device with 4 ports available, and a variant with 8

ports. The table below shows the number and type of the ports you can

choose. In the column for the port type, the abbreviations F/O (optical fiber)

and TP (twisted pair) indicate the media type, while the abbreviations DSC

and RJ45 indicate the socket type.
