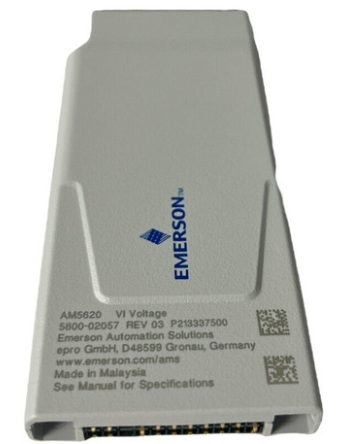

Emerson VI Voltage AM 5620 Compatible CHARMS

Mounting of NEMA Enclosure

The enclosure is rated for NAMA 4/12 and IP65/IP55. Dimensions of the enclosure are shown

in Figure 5. Mounting dimensions are shown in Figure 6. The enclosure may be bulkhead

mounted using the internal mounting holes. External mounting brackets may be used if

desired. When mounting using the internal mounting holes, caution must be used to ensure

the holes are sealed to maintain the NEMA/IP rating. The enclosure is supplied with five 1/2 in.

compression type cable entry hubs. These may be fitted with conduit type fittings if desired.

If the system includes backup LCD keypad terminal, some planning is required to allow for

proper height above the floor to view the display and properly operate the keypad.

The Network Master acquires data from

the valve actuators by polling or scanning each device in a sequence of slave address from

a table called a scan list. Polling is a process of the Network Master sending to each slave

address, a command to return its status information, including alarms, discrete and analog

inputs and outputs. When control commands (valve open, stop, close, position set point, etc.)

are generated by a host system up-line of the Network Master, it then sends the appropriate

commands over the network to the addressed slave device. A more detailed functional

description of operation is provided in the Theory of Operation section of this manual.

The AMS Wireless Vibration Monitor delivers full vibration data over a self-organizing

wireless mesh network. It provides rich information about machinery health for

both operations and maintenance personnel. Overall vibration, PeakVue measurements

and temperature readings can be easily integrated into any control system or plant historian,

while diagnostic data can be displayed by AMS Device Manager and AMS Machine

Works software with alert broadcast via the AMS Optics asset performance platform.

Emerson offers Ovation Simulation solutions using virtual technology that faithfully replicates the

Ovation DCS within a simulator configuration by using a few desktop workstations.
