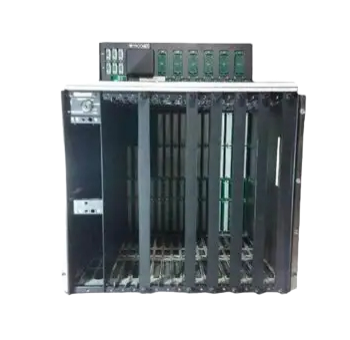

TRICONEX 8609-396-7113755 Triple Modular Redundancy

Maintenance

Processor, communications, and I/O modules can be replaced online without shutting down operations

Hot spare slots for continuous operation

Easy diagnostics for fast status and fault analysis

In-line modifications and changes, in-line module changes, and hot spare slots

- allow for continuous production without shutting down operations

Increased productivity and performance

Software tools for every step of the safety lifecycle (TriStation Software Suite)

Design systems faster with the TriStation TS1131 System Configuration, Programming and Documentation

TriStation Simulator for faster application testing using offline simulation without the need for a physical controller

Troubleshoot maintenance issues faster with enhanced diagnostic monitors for status and operational condition information

Troubleshoot process issues with TriStation SOE retrieval displays and analysis

Faster verification/re-verification of application logic with Safety Validator for automated testing and documentation of application logic

Report Generator for customized reports across multiple controllers or projects

Manage system changes faster with EcoStruxure System Advisor - Process Safety

Faster restart of operations with SIF Manager - Trip advisor software application

Manage prioritized alarms and bypasses with Safety View ABM software application

TMR Digital Input Modules

Each TMR Digital Input (DI) Module has three independent input channels

that independently process all data entered into the module.

A microprocessor on each channel scans each input point, compiles the data,

and transmits it to the main processor as required.

The input data is then voted on the main processor before being processed to ensure the highest integrity.

All critical signal paths are 100% triple processed to ensure safety and maximum availability.

Guaranteed safety and maximum availability.

Each channel regulates signals independently and provides optical isolation between the field and the Tricon.

All TMR digital input modules provide complete and continuous diagnostics for each channel.

Any diagnostic failure on any channel activates the Module Failure Indicator,

which in turn activates the chassis alarm signal.

The Module Failure Indicator points to a channel failure, not a module failure.

Modules are guaranteed to operate normally in the event of a single failure and to continue

to operate normally in the event of multiple failures of certain types.

Maybe you'll use these modules：

Invensys Triconex 3501E/T 115Vac/Vdc Digital Inputs

Invensys Triconex 3502E 48Vac/Vdc Digital Inputs

Invensys Triconex 3503E 24Vac/Vdc Digital Inputs

Invensys Triconex 3504E 24/48Vdc Digital Inputs

Invensys Triconex 3505E 24Vdc Digital Inputs

Invensys Triconex 3564 24Vdc Digital Input (Simplex)

Invensys Triconex 3511 Pulse Inputs

Invensys Triconex 3515 Pulse Totalizer

Invensys Triconex 3601E/T 115Vac Digital Outputs

Invensys Triconex 3603B/E/T 120Vdc Digital Outputs

Invensys Triconex 3604E 24Vdc Digital Outputs

Invensys Triconex 3607E 48Vdc Digital Outputs

Invensys Triconex 3611E 115Vac Digital Outputs
