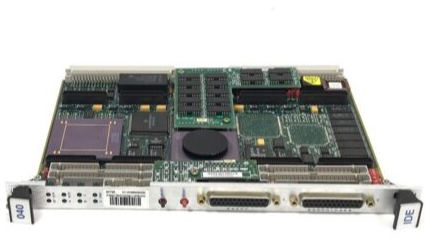

MOTOROLA-84-W8973B01A Wireless communication module

The MVME7100 increases performance and functionality while protecting the underlying

investment in the VMEbus and related technologies

Up to 1.3GHz system-on-chip NXP MPC864xD, featuring dual PowerPC® e600

processor cores, dual integrated memory controllers, DMA engine, PCI Express

interface, Ethernet and local I/O

Extended temperature (-40 °C to +71 °C) and ruggedised board variants available

Four Gigabit Ethernet ports

Up to 2GB of DDR2 ECC memory, 128MB NOR flash and 2GB, 4GB or 8GB NAND flash

USB 2.0 controller for cost-effective peripheral integration (commercial temperature only)

2eSST VME bus protocol with 20MB/s VME bus transfer rate

Dual 33/66/100 MHz PMC-X interfaces, expandable with industry-standard modules

Processor PMC support

8x PCI Express expansion connectors for PMC-X and XMC expansion using SMART EC

XMCspan

MVME7216E Direct Connect Rear Transition Module (RTM) for I/O routing through the

rear of the VMEbus chassis

The SMART Embedded Computing MVME7100 with System-on-Chip MPC864xD processor

is the ideal solution for VMEbus customers with applications on previous-generation VMEs,

in particular the MPC74xx processor.

The MVME7100 provides a development path for VMEbus customers with applications on

previous generation VMEs, in particular the MPC74xx processor. The system-on-chip

implementation offers power/heat dissipation, reliability and lifecycle benefits that are

typically found in other architectures.
