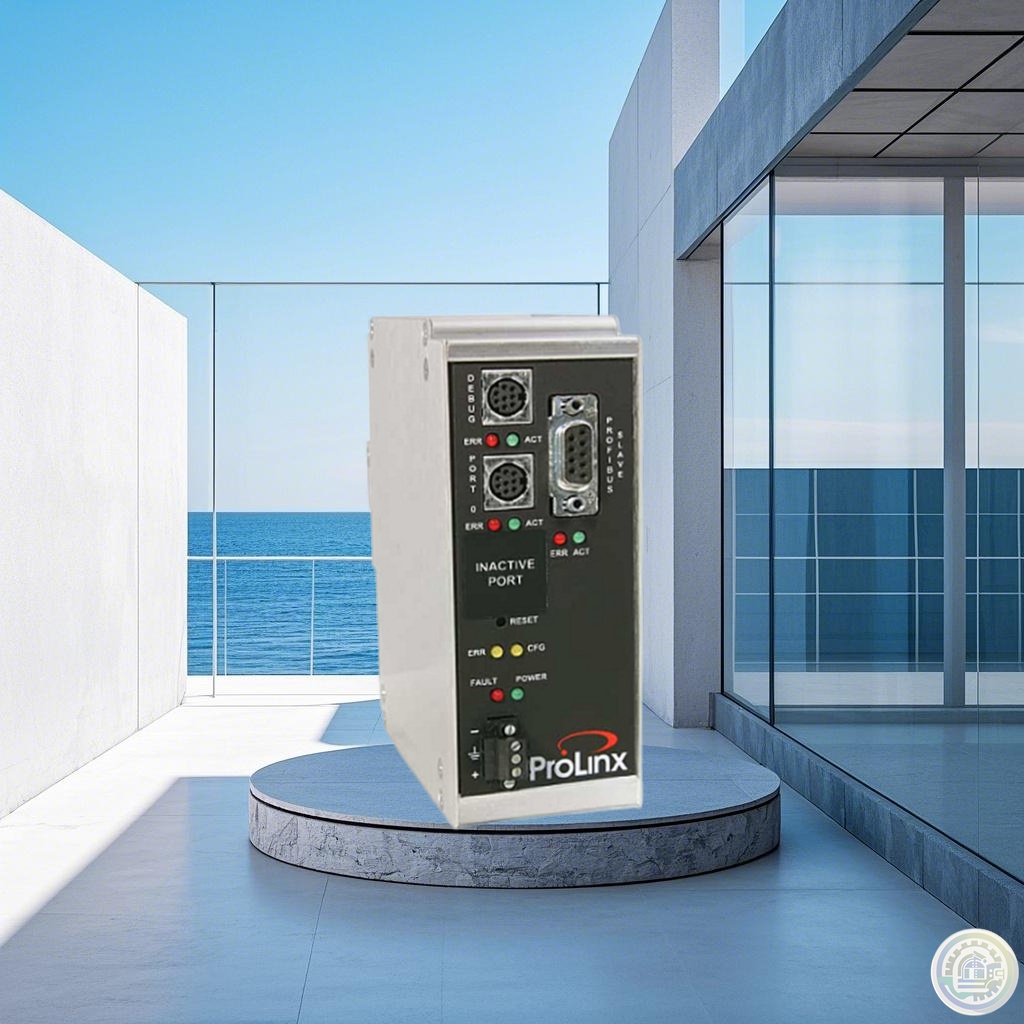

PROSOFT TECHNOLOGY PROLINX 5604-RIO-PDPMV1

DH+ to EtherNet/IP™

1/ The operating mode acts as a bridge between an EtherNet/IP and a DH+ network.

Programming terminals, and/or processors on an EtherNet/IP network can access legacy

processors on a DH+ network

Download to a PLC5 or SLC through RSLinx

Configured through web browser

Supports all DH+ baud rates (57.6. 115.2. and 230.4 K baud).

2/ The operating mode helps the communication between an Ethernet-Based processor

with legacy processors on a DH+ network.

Support gathering data without changing existing PLC or SLC hardware

DH+ to Modbus TCP

This operating mode allows Modbus TCP Clients to access the PLC data from stations on

a Data Highway Plus Network.

The Modbus TCP server supports up to 128 connections

Modbus Input and Output Registers are mapped to the PLC/SLC files for each station

Modbus TCP Unit/Slave ID data is mapped to the Data Highway Plus Station

The AN-X4-AB-DHRIO Gateway is designed to help customers initiate a phased migration

approach to replacing or upgrading legacy PLC’s, HMI's, Drives, or Flex I/O adapters.

These solutions can be achieved by selecting the corresponding operating mode during the initial configuration.

The AN-X4-AB-DHRIO has a built-in webserver to view diagnostics, current configuration,

upload configuration files, and set the operating mode. It is also DIN Rail Mountable.

AN-X2-ABRIO-EIPSCN Module Overview

The AN-X2-ABRIO-EIPSCN communications module connects a scanner such as a

PLC-5 on an Allen-Bradley remote I/O network to I/O modules on Ethernet/IP.

As parts become obsolete and remote I/O adapters become unavailable, the

AN-X2-ABRIO-EIPSCN is a solution that lets you retain the original controller, I/O

modules and field wiring and replace remote I/O adapters with Ethernet adapters. The

existing remote I/O scanner talks to the AN-X, which maps discrete and analog I/O on

remote I/O to Ethernet data.
