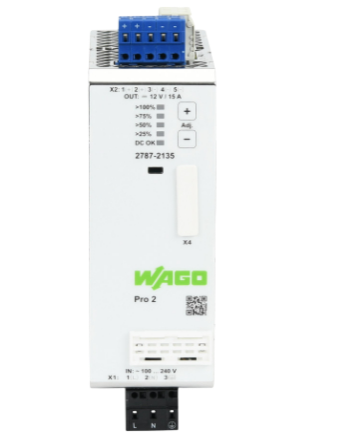

WAGO 2787-2135 Switching Power Supply

Features:

• Power supply with TopBoost, PowerBoost and configurable overload behavior

• Configurable digital signal input and output, optical status indication, function keys

• Communication interface for configuration and monitoring

• Optional connection to IO-Link, EtherNet/IPTM, Modbus TCP or Modbus RTU

• Suitable for both parallel and series operation

• Natural convection cooling when horizontally mounted

• Pluggable connection technology

• Electrically isolated output voltage (SELV/PELV) per EN 61010-2-201/UL 61010-2-201

• Marker slot for WAGO marking cards (WMB) and WAGO marking strips

Electrically isolated output voltage (SELV/PELV) per EN 61010-2-201/UL 61010-2-201

Marker slot for WAGO marking cards (WMB) and WAGO marking strips

WAGO Pro2 compact switched-mode power supplies provide a wide range of uses.

These power supplies can be mounted on a 35mm DIN rail and can be configured

directly via buttons on the device’s face, using the WAGO USB configuration cable to

connect to the integrated communication interface, or using one of the WAGO Pro2

communication modules. In addition, the WAGO Interface Configuration software

(free download) can be used to record and evaluate various output parameters.

The pluggable connection technology uses WAGO CAGE CLAMP® connectors, which

allow pre-wiring for quicker installations as well as quicker and easier product replacement.

For configuration, data collection, and read-out of status information, the Pro2 Power

Supply can be connected to a dedicated WAGO Pro2 communication module at any time,

allowing selection of the desired protocol for coupling to the automation and control system.

The LED bar chart on the front reliably indicates the current output power, as well as

overloads/load reserves. Furthermore, the LEDs indicate the selected operating mode and,

when needed, warnings and errors.

The WAGO Power Supply Pro 2 is smaller than its predecessor, but offers greater efficiency.

What that means to you is three times the cost savings and further crucial advantages:

First of all: The higher efficiency of up to 96 % reduces energy loss, and thus energy costs.

Second: The WAGO Power Supply Pro 2 generates less heat in the control cabinet, allowing

corresponding savings on cooling solutions.

Third: Less warming means a longer service life of the components.

From planning, to installation, to long-term operation, the WAGO Power Supply Pro 2 saves

you even more time and money, since it can be created, planned, modified and ultimately

operated as a digital twin. All the necessary data is available in the most important 2D/3D

formats, and the communication provides transparency.

Marking compliant with EN 81346-2 is important for quick and safe installation.

The WAGO Power Supply Pro 2 accommodates this through unambiguous imprinted connection

designations and the option of device identification through marking strips.
