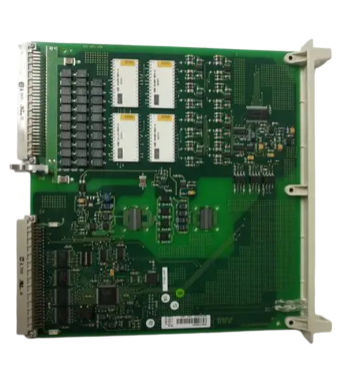

ABB 12KG04O-V0002 3EGM031400R0002 Control Card

Green, energy efficient automation solutions

The SD Series is part of a solid portfolio of energy efficient products from ABB, which together

can significantly reduce energy used and often wasted in plants and processes. Combined with

ABB variable speed drives and high efficiency motors, the SD Series can significantly reduce

your energy consumption and directly improve bottom line profits in the form of higher revenue

or lower operating costs.

Controlling your green initiative

The SD Series energy efficient design results in power requirements that are a fraction of

today's typical DCS control and I/O offerings. As low power consumers and low heat generators,

these modular products require smaller cabinet space, without the need for costly fans, louvers,

air filters or forced cooling. Smaller footprint and less moving parts translates in lower design

and installation costs, lower annual maintenance costs and improvements in system reliability.

As an added bonus, low power consumption reduces the system’s UPS (Uninterruptible Power Supply)

size requirements.

Local and remote options

24V DC power requirements, low module power consumption, and a module temperature rating

of -40°C to +70°C (ambient) make SD Series I/O equally suited for local or remote I/O installations.

G3 coating makes SD Series I/O suitable for use in corrosive environments without requiring costly

sealed cabinets or purging systems. The software configuration is identical when configured as

either local I/O or remote I/O or mixed.

Easy expansion of existing Rack systems SD Series I/O modules are compatible with HR

Series BRC300/400/410 controllers for easy, incremental expansion of existing Rack systems.

Typical examples include expansion with remote I/O or HART enhancements to existing Rack

installations.

The SD Series I/O product family includes DIN Rail horizontally or vertically mounted digital

and analog modules, as well as integration with intelligent field devices and protocols using

PROFIBUS DP, HART, IEC 61850. IEC 60870-5 104. DNP 3.0. and Modbus TCP communications.

Hardwire I/O and fieldbus I/O coexist and use the same function block library to build real-time

control applications.
