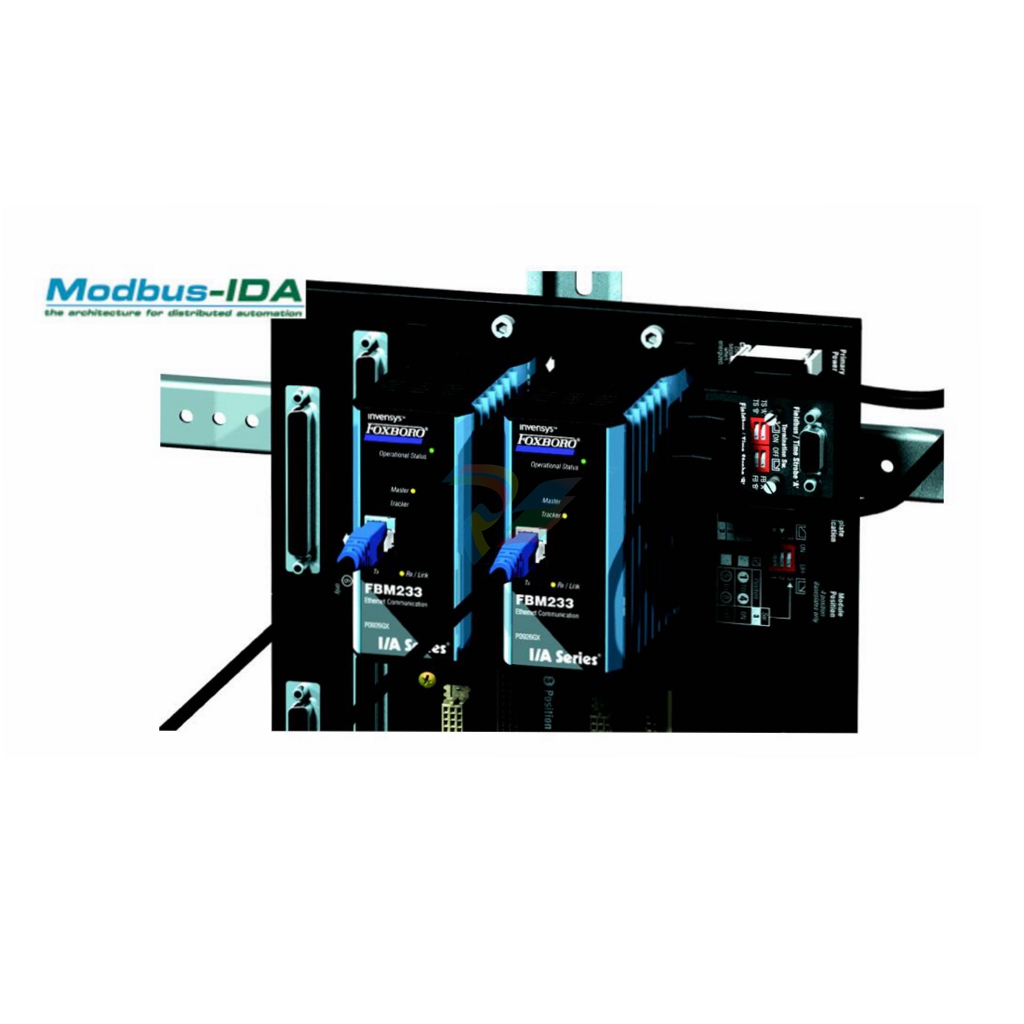

Foxboro FBM233 P0926GX Field Device System Integrator Module

Supported Devices

The FCP280 supports the following devices on the 2 Mbps fieldbus:

- All compact and standard 200 series FBMs, which support many types of intelligent field devices.

including those on Foundation Fieldbus, PROFIBUS, HART, and DeviceNet networks.

- Foxboro DCS Field Device System Integrator (FDSI) Modules

- Intrinsically Safe I/O Subsystem (ISCM) - see Intrinsically Safe I/O Subsystem (PSS 31H-2Y6)

- DCS Migration Fieldbus Module for Siemens APACS+ Systems

- DCS Migration Fieldbus Module for Westinghouse WDPF® Systems

- DCS Fieldbus Migration Module for Fisher PROVOX® 20 Series Migration HART

- DCS Fieldbus Migration Module for Honeywell® TDC 2000 Systems

(with standard backplane for HART use).

The FCP280 supports the following devices on a 268 Kbps fieldbus:

- 100 Series FBM

- SPECTRUM™ Migration Integrator

- SPEC 200™ Control Integrator

- SPEC 200 MICRO™ Control Integrator

- SPEC 200 CCM Control Integrator

Foxboro Gas Chromatographs are not supported.

CONFIGURATOR

The FDSI configurator sets up the FBM232 XMLbased port and device configuration files.

The port configurator allows for easy setup of thecommunication parameters for each port

(such as, Dynamic Host Configuration Protocol (DHCP), IPaddresses).

The device configurator is not needed forall devices, but when needed it configures device

specific and point specific considerations (such as, scan rate, address of the data to be transferred,

and the amount of data to be transferred in one transaction).

This FBM is a generic Ethernet hardware module inwhich different software drivers

can be loaded. These drivers configure the FBM to recognize a particular

protocol used by the device. Several of the software drivers are standard product offerings.

Other custom drivers can be developed to meet specific needs.

These drivers are dynamically downloaded to the FBM232 with software code

specifically designed to interface with the third party device’s protocol.

The configuration procedures and the software requirements for each driver

are unique to the device(s) being integrated into the system.

ETHERNET LINK SETUP

Data communication between the FBM232 and field devices are through the RJ-45 connectorlocated on

the front of the FBM232 module. The RJ-45 connector of the FBM232 can be connected through

hubs, or through Ethernet switches to the field devices (refer to “ETHERNET HUBS AND

SWITCHES” on page 8). Connection of multiple devices to the FBM232 requires a hub or switch.
