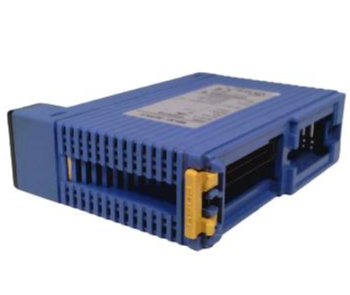

F3YC16-0N Relay Output Module Yokogawa

Forwarding of Control Communication Frames

Function

Bandwidth Limit Function suppresses the Control

Communication Frame data volume to interexchange

among the WAN within the limit of the specified

bandwidth or less.  Data overflow among the WAN

exceeding the contracted bandwidth is prevented.

When the Bandwidth Limit Function is activated, the

Preferential Forwarding of Control communication

Frames Function also becomes activated.

In case the transmission request to exceed the

bandwidth limit occurs, the conrol communication

frame is transmitted by giving the priorities based on

the below table.

Even when the WAC Router abandons any data

exceeding the bandwidth limit by its Bandwidth Limit

Function; however, transmission of important control

communication frames can be protected.

Building Automated Test System

Macro Programming

•  Build a simple auto-measurement system without an

external controller.

•  Easy to create test program by recording the user's

actual key strokes and parameter selections.

Fast remote Interfaces

•  GP-IB, RS-232. and Ethernet (10/100Base-T) interfaces

•  Improve the testing throughput of test systems by the fast

measurement, command processing, and data transfer speed.

•  SCPI compatible commands and AQ6317 Emulation Mode

•  LabVIEW® Driver available

Easy to Keep Accurate

Ambient condition change, vibration and shock to an optical precision

product, like an optical spectrum analyzer, will effect the optical

components, and eventually degrade optical performance. Using

standard functions, The AQ6370C can maintain its high optical

performance within a couple of minutes so that you can quickly start

a measurement.

World-class Optical Performance

• Wavelength range: 600 to 1700nm

• High wavelength accuracy: ±0.01nm

• High wavelength resolution: 0.02nm

• Wide dynamic range: 78dB typ.

• Wide level range: +20 to -90dBm

• Fast measurement: 0.2 sec. (100nm span)

• Applicable to single-mode and multimode fibers
