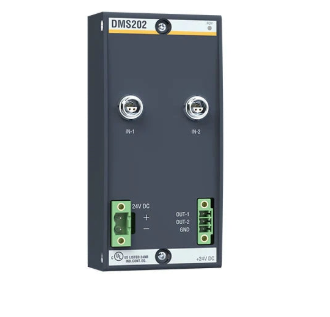

Bachmann DMS202 Strain Gauge Input Module

The comprehensive scope of Bachmann electronic software enables it to be used as

a PLC, motion controller or communication and data centre.

Consistent compatibility of the PACs application software protects the user's investments

for future expansions.

Individual requirements can be met easily with a wide range of powerful CPUs

based on industrial (Pentium) processors and with an extensive range of I/O

modules. Real-time capable bus systems enable the automation to be

decentralized without any loss of performance.

The M200 series perfectly combines the flexibility of a PC-based controller with

the reliability of industrial hardware platforms. Designed for the toughest

environmental conditions, they guarantee fail-safe operation with fanless

installation from -40 °C up to an ambient temperature of +70 °C.

State-of-the-art system architecture designed for seamless networking capability

enables the M200 to be integrated easily in peripheral controller and system

components. Real-time Ethernet permits real-time capable controller networking

and supports all currently available fieldbus systems. It enables external

components to be connected via standard interfaces.

The M100 series is the perfect system extension for decentralized use in

combination with the Bachmann M200 series.

Processor modules of the MH200 series combine maximum processing

performance with outstanding environmental robustness.

Thanks to multicore technology and symmetrical multi-processing for

real-time systems, the 2.3 GHz CPU is also suitable for demanding

applications with very high volume requirements and short cycle times.

Specific tasks such as complex motion control, image processing or

higher-level control and communication tasks benefit from the parallel

processing of up to 4 tasks. Data centric applications, such as process

diagnostics, machine learning or the predictive maintenance of large

machine parks can be implemented easily thanks to the large working memory.

The generous thermal design and special coating processes enable fan-free

use in extreme operating conditions from -30 °C to +60 °C.

The integrated power supply unit, which also provides the I/O module supply,

enables the installed volume to be kept very compact.
