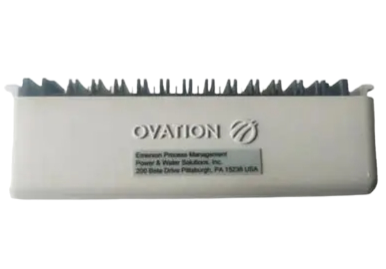

EMERSON DB1-1 Industrial Controller Module

Controller and I/O interface

power distribution is integrated into the carriers to reduce and

simplify power and grounding. I/O Carriers have an integrated

shield ground bar to isolate and drain field noise away from

system power. They also provide an integrated redundant 24V

DC bussed field power distribution to reduce installation wiring

and provide fused, isolated power to each I/O interface, using

Power Buss Plugs. Alternatively, the I/O carriers can be ordered

with Power Terminal Plugs to bring dedicated power to each

card, which can be either 24V DC or 120/230V AC. Power Buss

Plugs and Power Terminal Plugs can be mixed on one I/O Carrier.

Whisper Trim III cages provide effective attenuation of aerodynamic noise in vapor, gas,

or steam applications involving high pressure drops or high pressure drop ratios.

Using a Whisper Trim III cage in conjunction with a properly-sized valve body

can substantially reduce the noise level of the control application.

Aerodynamic noise is generated by the turbulence created in the flow of

vapor, gas, or steam as the fluid passes through a control valve.

AMS Asset Monitor manages pervasive sensing while providing prediction,

protection and edge process monitoring capabilities, mounting at the asset to

reduce cabling requirements and installation costs. It accommodates up to

12 CHARMs including Vibration CHARMs as well as DeltaV CHARMs for process inputs.

AMS Asset Monitor features powerful out-of-the-box software functionality via

web browser for analysis, reporting, and alerting. This web-based thin client interface

features an internal Logic Studio with pre-programmed application solutions for

easy-to-understand analysis and alert reporting, and its Asset Studio interface delivers

asset information to the user’s mobile device or desktop thin client.

Carriers mount to standard t-type DIN rail with latches that

require no tools for quick installation. The latches can be

released using a blade screw driver. Simply snap the carrier

to the rail and slide adjacent carriers together to engage the

bus connector.
