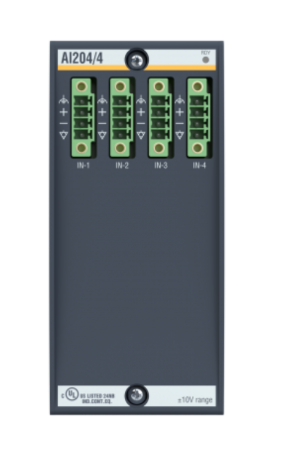

AI204/4 Bachmann Analog input / output modules

Processor modules

What sets them apart:

Scalable performance up to 1.9 GHz multicore

Generous RAM up to 8 GB

2 to 4 real-time-capable Gigabit Ethernet interfaces

EtherCAT master and PROFINET controller 1) without additional modules

1) in preparation

Onboard flash and microSD as removable media

Secure boot with hardware root of trust

Role-based access control (RBAC)

Fine-grained permissions system for user applications

Real-time Linux, process isolation

Hardware watchdog, RTC, non-volatile memory

Ultra-fast expansion slot

–30 to 70 °C, fanless

4 g vibration, 20 g continuous shock

The CPS100 CPUs combine maximum processing performance with outstanding

robustness and compact dimensions. Scalable processors with up to 4 physical

processor cores and clock frequencies of up to 1.9 GHz enable the implementation

of a wide range of applications and provide a generous reserve for future expansion.

Thanks to multicore technology and symmetrical multiprocessing for real-time systems,

the CPUs are suitable for very demanding applications; such as high volume

requirements and short cycle times.

Parallel processing from the multicore units enables a more responsive machine

control, complex motion control, and demanding communication tasks.

The multicore options also offer various IT security benefits, such as stronger

algorithms and longer keys. Data centric applications, such as process diagnostics,

machine learning and predictive maintenance are easily implemented thanks to the

large working memory.
