SPC810ev2K02 ABB Ability™ Symphony® Plus Hardware Selector

The SPC810ev2K02 is the latest addition to the Symphony Plus

controller family. SPC810ev2K02 controller features include; a

modular high-density design, low energy consumption, flexible

DIN-Rail column or row mounting, and extreme operating

temperature range (-40 to +70 °C).

The SPC810ev2K02 controllers also are high-performance process

controllers that support all types of control requirements including

discrete, continuous, sequential, and advanced control applications.

SPC810ev2K02 controllers are capable of executing

control applications that are demanding in terms of both data and

computations.

SPC810ev2K02 controllers have (4) RJ45 Ethernet ports PN800A

and PN800B (located on PBA812 Process Bus Adaptor) for

connection to the PN800 Plant Network, EN 2A for connection to

an optional SNTP network that provides precise time

synchronization, and EN 2B for connection to MODBUS TCP

networks. Both EN 2A & 2B ports are located on the module front plate.

SPC810ev2K02 supports up to 30.000 Function Blocks,

1000 hardwired IO, and up to 8 remote IO links.

SPC810ev2K02 is capable of executing closed-loop control logic

for up to 5000 process IO in less than 250 msec.

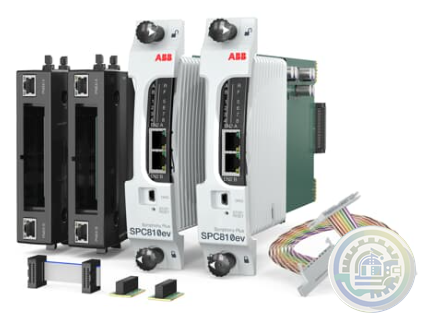

SPC810ev1K02 is a Harmony Rackmount, redundant controller kit

that includes: 2x SPC810ev modules + 2x PBA812 Process Bus

Adaptors + 2x TER800 bus terminators.

Features and benefits

• SIMPLE: SPC810ev2K02 controllers provide time-proven solutions optimized for processed control

• SCALABLE: SPC810ev2K02 is optimized for medium-sized control applications of up to 5000

process I/O

• SEAMLESS: SPC810ev2K02 controllers connect directly to Harmony Rack IO over IOX-BUS. PBA812

enables the controller to connect to NTMP01 TUs for serial interfaces.

• SECURE: S+ systems using SPC810ev2K02 controllers have been certified to Security Level 1 as

defined by IEC 62443

• SPC810ev2K02 controllers support high speed, synchronous, PTP controller communications over

the CW800 bus.

• SPC810ev2K02 controllers are configured by the S+ Engineering Tool Suite.

• SPC810ev2K02 hardware is designed for the optimum evolution/replacement of MFPxx and

BRCxxx HR Controllers.
