ABB SPC810ev Ability™ Symphony® Plus Hardware Selector

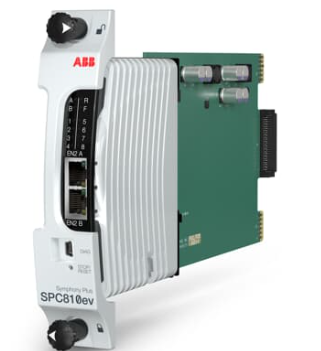

The SPC810ev is a Symphony Plus SDe Series controller assembly.

SPC810ev is a Form / Fit / Function replacement for MFPxx and

BRCxxx controllers. SPC810ev controller features include; a

modular high-density design, low energy consumption, extreme

operating temperature range (-40 to +70 °C), and the ability to redeply

the SPC810e module into multiple applications.

The SPC810ev controllers also are high-performance process

controllers that support all types of control requirements including

discrete, continuous, sequential, and advanced control

applications. SPC810ev controllers are capable of executing

control applications that are demanding in terms of both data and

computations.

SPC810ev controllers have a total of four (4) RJ45 Ethernet ports.

PN800A and PN800B (located on PBA811 Process Bus Adaptor) for

connection to the PN800 Plant Network, EN 2A for connection to

an optional SNTP network that provides precise time

synchronization, and EN 2B for connection to MODBUS TCP

networks. Both EN 2A & 2B ports are located on the module front

plate.

SPC810ev supports up to 30.000 Function Blocks, 5000

hardwired IO, and up to 8 remote IO links. SPC810ev is

capable of executing closed-loop control logic for up to 5000

process IO in less than 250 msec.

SPC810ev is a Harmony Rack mounted controller.

Features and benefits

• SIMPLE: SPC810ev controllers provide time-proven solutions optimized for processed control

• SCALABLE: SPC810ev is optimized for large-sized control applications of up to 5000 process I/O

SEAMLESS: SPC810ev controllers connect directly to Harmony Rack IO over IOX-BUS. PBA811

• enables the controller to connect to SD Series IO over the redundant HN800 IO Bus.

• SECURE: S+ systems using SPC810ev controllers have been designed to meet Security Level 1 as

defined by IEC 62443

• SPC810ev controllers support high speed, synchronous, PTP controller communications over the

CW800 bus.

• SPC810ev controllers are configured by the S+ Engineering Tool Suite.

• SPC810ev hardware is designed for the optimum evolution/replacement of MFPxx and BRCxxx HR

Controllers.
