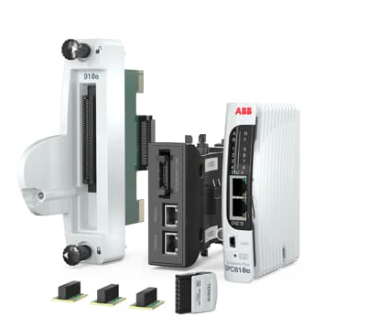

ABB SPC810ev1K02 Hardware Selector Features and benefits

From:ABB | author:Mr.Chen | Time :2025-10-14 | 17 view: | Share:

Features and benefits

• SIMPLE: SPC810ev1K02 controllers provide time-proven solutions optimized for processed control

• SCALABLE: SPC810ev1K02 is optimized for medium-sized control applications of up to 5000

process I/O

• SEAMLESS: SPC810ev1K02 controllers connect directly to Harmony Rack IO over IOX-BUS. PBA811

enables the controller to connect to SD Series IO over the redundant HN800 IO Bus.

• SECURE: S+ systems using SPC810ev1K02 controllers have been certified to Security Level 1 as

defined by IEC 62443

• SPC810ev1K02 controllers support high speed, synchronous, PTP controller communications over

the CW800 bus.

• SPC810ev1K02 controllers are configured by the S+ Engineering Tool Suite.

• SPC810ev1K02 hardware is designed for the optimum evolution/replacement of MFPxx and BRCxxx

HR Controllers.

General info

Article number7PAA006320R0201
Life cycle statusACTIVE
RedundancyYes
SILNo
Clock Frequency250 MHz
FBs per controller30000
Closed loop control performance5000 I/O in under 250 msec
XR communicationsUp to 100 import + 1000 export XR messages per sec
DRAM Memory128 MB RAM
NVRAM2.0 MB MRAM
Flash ROM4 MB Flash ROM
Form factorHR Module
MountingHR (2-slots in MMU)
HN800 bus length355 mm
MTBF (per MIL-HDBK-217-FN2)SPC810ev PR: D = 230,710 hours @ 40 °C
MTTR (Hours)SPC810ev1K02 MTTR = 1 hour
