ABB SCI200K01 Ability™ Symphony® Plus Hardware Selector

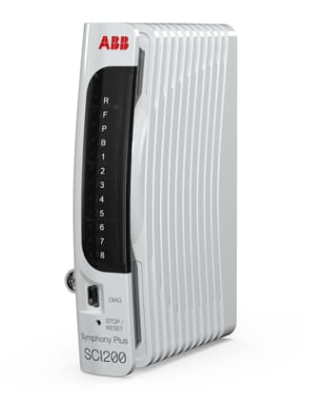

The SCI200 S+ compact Communications Interface module is the

general purpose Ethernet interface for SPCxxx controllers.

The SCI200 supports IEC60870-5-104. DNP 3.0 and Ethernet IP

protocols and communicates with SPCxxx controllers over the

HN800 IO bus.

SCI200K01 is a communication interface kit that includes: 1x

SCI200 module + 1x MB605 base.

Features and benefits

IEC60870-5-104 interface capabilities include:

• Master or Slave and support for all major data types.

• As a Master connect up to 16 Slave devices

• As a Slave connect up to 8 Masters

DNP 3.0 interface capabilities include:

• Master (only) support for Level 3+ data objects

• Send Single, Double and Set-Point commands

• Supports both direct operate and Select Before Operate control models.

• Master supports up to 16 DNP outstations and 1500 Total points
