KEBA KePlast i1100 Optimized performance for standard hydraulic IMMs

KePlast i1100 combines an outstanding and user

friendly operation with established keyboards and

complete performance control for the high productivity

– perfectly designed for hydraulic standard injection

molding machines. The Linux-based software platform

is future-proof and enables Industry 4.0 requirements,

communication protocol, and interface standards, such

as OPC UA & EUROMAP 77.

The focus is on the user

While offering a unique and open KePlast framework, the

series adapts control PLC and customizes HMI user screens

via a modern and user-friendly tool suite. The operation

panels cover a wide range of 8” to 12” brilliant TFT displays

and follow an easy-to-use menu structure.

A smooth workflow with intuitive operation and best usability

for eco machines provide an exceptionally rapid set-up for

process values – with several features, e.g., Quick Access

& Info Panel.

The classic control choice for any hydraulic machine

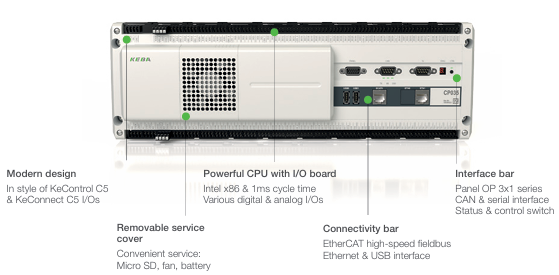

With its powerful control CP 035. KePlast i1100 is suitable

for both vertical and horizontal machines combined with

servo pumps or other peripheral devices connected via

high-speed EtherCAT. Due to the optimized performance

you can achieve high process accuracy for perfect results.

KePlast: more than a control solution

KEBA speaks the language of the plastics industry: We

understand the markets, processes, and customer-specific

requirements. You can benefit from a strong partnership

and the KePlast system with premium quality on both

hardware and software levels. Comprehensive technology

libraries guarantee efficient and user-friendly application

programming. The future-proof platform ensures the best

performance towards any digitalization trends offering a

broad Industry 4.0 portfolio.

Fast cut-off reaction for best process quality

Due to a sophisticated solution on the hardware level, a fast

cut-off reaction of 62.5µs and a minimized jitter is guaranteed

for an absolutely stable process. Various digital and analog

inputs and outputs can be freely configured according to

specific machine requirements. The implemented cut-off

detection on the CP 035 controller – in combination with

an immediate output reaction – is the optimized solution for

perfectly molded parts.
