Streamline complex power system monitoring with easYview, Woodward’s advanced visualization solution

From:Woodward | author:Mr.Chen | Time :2025-11-22 | 21 view: | Share:

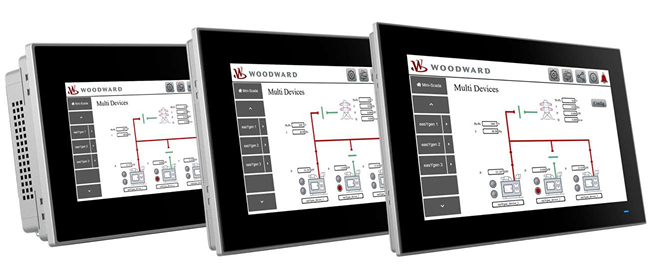

Streamline complex power system monitoring with easYview, Woodward’s advanced visualization solution.

Featuring plug and play support for up to 4 easYgenXT controls and one utility, easYview delivers intuitive

web-based engineering without requiring web expertise. Customize visualizations with ease using

the atvise system, enabling personalized designs, open connectivity, and scalability across different screen sizes.

Whether integrating with 3rd party SCADA systems or tailoring sophisticated applications,

easYview saves engineering time while providing full functionality for your unique needs.

Features

• Engineering Time Savings: Leverage Woodward’s pre-engineered software with consistent

object orientation in the engineering of data structures and graphic objects

• Simple and Easy to Use: Intuitive web-visualization engineering tool without Web-Knowledge

• More Clients: the easYview server allows you to embed the visualization into 3rd party SCADA

or run it via web-clients on various devices like a central industrial PC or laptop

• Customization: plenty of room for customization including easy connectivity to

other systems through open interfaces

• Scalable: for different screen sizes

• Full Functionality: All developer features can be used in full, without any restrictions.

The full atvise software license is included in each easYview hardware

Functionality

Standard Features

• Plug and Play support of up to 4 easYgen XT and one utility (identity controls via a Woodward automatic network check)

• VNC connection to single controls

• Personalization

Basic Customization

• Visualization protocol already mapped in atvise system

• Fetch the data to create your own pages/buttons etc.

Advanced Customization

• Other Woodward controls supporting Ethernet (LS-6XT, easYi, 505XT, Micronet+)

• 3rd party IEDs (Allen-Bradley, Siemens Simatic)

• Upcoming: pre-designed configurations. Example: H configuration (2 gensets + 2 grids + 1 tie breaker)

• Please contact Woodward for advanced customization services.
