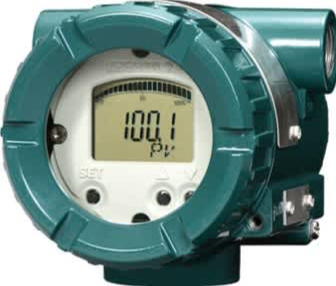

YOKOGAWA YTA710 Temperature Transmitter

The YTA710 provides high accuracy, stability, and reliability.

The housing structure adopts reliable dual-compartment structure.

The sensor input can be choice of single or dual inputs. This input

can accept the RTD, thermocouple, ohm, or DC millivolt. It converts

the sensor input to a 4 to 20mA DC analog signal or Fieldbus digital signal.

HART 7 Protocol, BRAIN Protocol or FOUNDATION™ Fieldbus ITK 6 version

are available. The dual input can accept two sensors calculation of the

differential or average value and the sensor backup function.

Sensor backup functions for automatically switches-over from the primary

to the backup upon sensor failure. By adoption of local parameter switch

on the Indicator, it becomes easy to do the on-site setting work.

YTA710 features include:

• Dual-compartment field-mount housing

• Choice of HART 7. BRAIN Protocol or FOUNDATION™ Fieldbus ITK 6 Protocol

• Local Parameter Setting function (Indicator model)

• Advanced diagnosis

    FEATURES

High    reliability

Dual-compartment housing realizes high resistance

capability to harsh environments.

Variety    of    sensor    inputs

The type of sensor input is user-selectable from

thermocouples (T/C), RTDs, ohms, or DC millivolts.

Digital    communication

HART protocol revision is 7 and FOUNDATION Fieldbus.

The instrument confi guration can be changed by the

user with using the Fieldmate or Handheld terminal.

Local    Parameter    Setting

Parameter confi guration by the push button off ers

easy and quick setup for parameters.

Self-diagnostics    function

Continuous self-diagnostics capability ensures

longterm performance and lower cost of ownership.

Dual    universal    inputs

Dual input can accept two thermocouple, RTD,

ohm or DC millivolt inputs. Diff erential or average

temperature measurement is selectable. The sensor

backup function for automatically switches-over from

the primary to the backup upon sensor failure.
