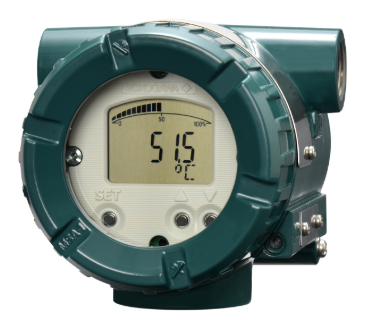

YOKOGAWA YTA610 Temperature Transmitter

The YTA610 provides high accuracy, stability, and reliability.

The housing structure adopts reliable dual-compartment structure.

The sensor input can be choice of single or dual inputs. This input

can accept the RTD, thermocouple, ohm, or DC millivolt.

It converts the sensor input to a 4 to 20 mA DC analog signal or

Fieldbus digital signal. HART 7 Protocol or FOUNDATION™ Fieldbus

ITK 6 version are available. The dual input can accept two sensors

calculation of the differential or average value and the sensor backup

function. Sensor backup functions for automatically switches-over from

the primary to the backup upon sensor failure.

By adoption of local parameter switch on the Indicator, it becomes

easy to do the on-site setting work.

YTA610 features include:

• Dual-compartment field-mount housing

• Choice of HART 7. or FOUNDATION™ Fieldbus ITK 6 Protocol

• Local Parameter Setting function (Indicator model)

• Basic diagnosis

The YTA610 is the highly accurate temperature

transmitter that accepts Thermocouple, RTD, ohms or

DC millivolts inputs and converts it to a 4 to 20 mA DC

or Fieldbus signal for transmission.

The YTA610 supports HART and FOUNDATION Fieldbus

communication protocols.

HART type is certifi ed as complying with SIL 2 for

safety requirement.

    FEATURES

High    reliability

Dual-compartment housing realizes high resistance

capability to harsh environments.

Variety    of    sensor    inputs

The type of sensor input is user-selectable from

thermocouples (T/C), RTDs, ohms, or DC millivolts.

Digital    communication

HART protocol revision is 7 and FOUNDATION Fieldbus.

The instrument confi guration can be changed by the

user with using the Fieldmate or Handheld terminal.

Local    Parameter    Setting

Parameter confi guration by the push button off ers

easy and quick setup for parameters.

Self-diagnostics    function

Continuous self-diagnostics capability ensures

longterm performance and lower cost of ownership.

Dual    universal    inputs

Dual input can accept two thermocouple, RTD,

ohm or DC millivolt inputs. Diff erential or average

temperature measurement is selectable. The sensor

backup function for automatically switches-over from

the primary to the backup upon sensor failure.
