Prosoft PLX31-EIP-PND EtherNet/IP™ to PROFINET® IO Device Gateway

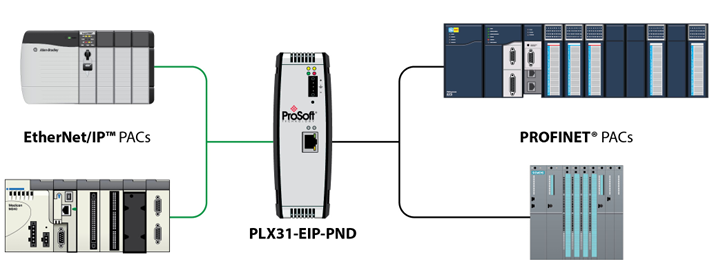

The EtherNet/IP™ to PROFINET® IO Device (slave) gateway offers bi-directional

data transfers between EtherNet/IP™ controllers and a PROFINET® IO controller.

The EtherNet/IP™ Driver supports I/O connections for guaranteed data delivery or

Message instructions to send data to/from the PACs. The gateway supports 1440

bytes of input data and 1440 bytes of output data for larger applications.

In addition, the gateway’s multiple I/O connections, allow you to set different RPIs

for control data and module diagnostics, enabling you to optimize your Ethernet

bandwidth.

Features

 Embedded EDS Add-On Profile allows for simplified integration and reduced

configuration time for Rockwell Automation PACs.

 No ladder programming is required when using I/O connections.

 Multiple I/O connections allow you to set different RPIs for status and control

data, enabling Ethernet bandwidth optimization.

 Communication via an I/O connection provides guaranteed data delivery and

enables a PAC to monitor for communication faults.

 SD card slot (SD card optional) is used for storing configuration files in the

event of a disaster.

 ProSoft Discovery Service allows your PC to find the gateway and edit its default

IP address without being on the same subnet.

 Video setup tutorial provided at psft.com/Ap5

 Secure module configuration via module switch (v1.04 and greater).

 Up to 10.000 16-bit registers can be used to exchange large amounts of data.
