Bently Nevada Orbit Distributed Condition Monitoring

From:Bently | author:Mr.Chen | Time :2025-12-03 | 19 view: | Share:

Description

Orbit Distributed Condition Monitoring (DCM) is a high speed,

synchronous, and distributed condition monitoring solution at

the edge for plantwide connectivity.

Bently Nevada’s advanced signal processing algorithms,

combined with machine operating state evaluation and

versatile high resolution data collection capabilities, enable

greater asset reliability and diagnostic capabilities when

coupled with System 1 for a complete solution.

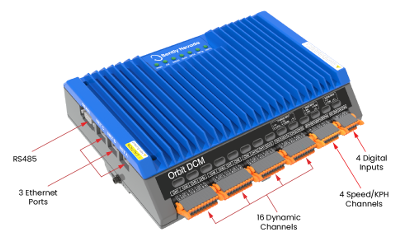

Key benefits of Orbit DCM include:

• Reliable and robust signal processing

• Simultaneous channel sampling

o 16 Dynamic Channels

o 4 Speed (Keyphasor)

o 4 Digital Inputs

• System 1 configurability

• Offline data retention

• High-speed state evaluation

• 4-severity level alarming

• High resolution data capture (flight recorder)

• 10/100/1000 BASE-T RJ45 and RS485 Interfaces

• Modbus client/server support on TCP and RTU

• Industrial rated CSA CID2. ATEX/IECEx Zone 2

Benefits of using Orbit DCM include:

• Supports many common sensor types

• Improved planning for maintenance schedules

• Early detection of machine or process issues

• Cost savings from reduced machinery downtime

Orbit DCM combined with System 1 supports a condition

based maintenance program that identifies problems before

assets begin to fail.
