Prosoft ILX69-PBM PROFIBUS DPV1 Master for CompactLogix

The ILX69-PBM PROFIBUS DPV1 Master module provides all the

advantages of in-chassis PROFIBUS communication, such as the

inclusion of an AOI and the Autoscan features which greatly reduce your

commissioning time, and ComDTM that provides remote Ethernet

connectivity with asset management software.

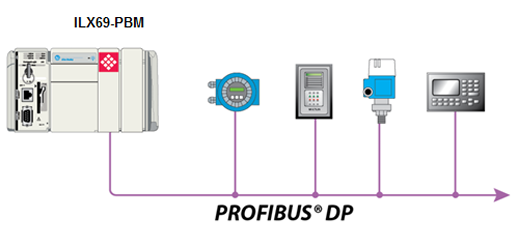

With these modules, CompactLogix™ processors can easily

communicate with slave devices supporting PROFIBUS DPV0 and DPV1

protocol. The module acts as an input/output module between the

PROFIBUS network and the processor supporting complete Master

specifications according to IEC 61158.

Features

 AOI: Module communication is integrated within Studio/RSLogix 5000

using a sample Add-On Instruction (AOI), or sample ladder logic file,

reducing commissioning time.

 Autoscan: The new Autoscan feature reduces start up times and simplifies

troubleshooting by scanning the PROFIBUS network and uploading slave device

addresses and configuration information. (Reads and maps nodes automatically

to the module.)

 ComDTM: Allows remote Ethernet connectivity with Asset Management

Software significantly lowering maintenance costs.

You can configure, commission, maintain and diagnose your fieldbus devices

throughout their entire lifecycle with this comprehensive, fully integrated engineering

and maintenance environment.

 SD card slot (SD card optional) is used for storing configuration files in the event

of a disaster. It can also be used to update the firmware of the module without the

need of a 1769 CPU.
