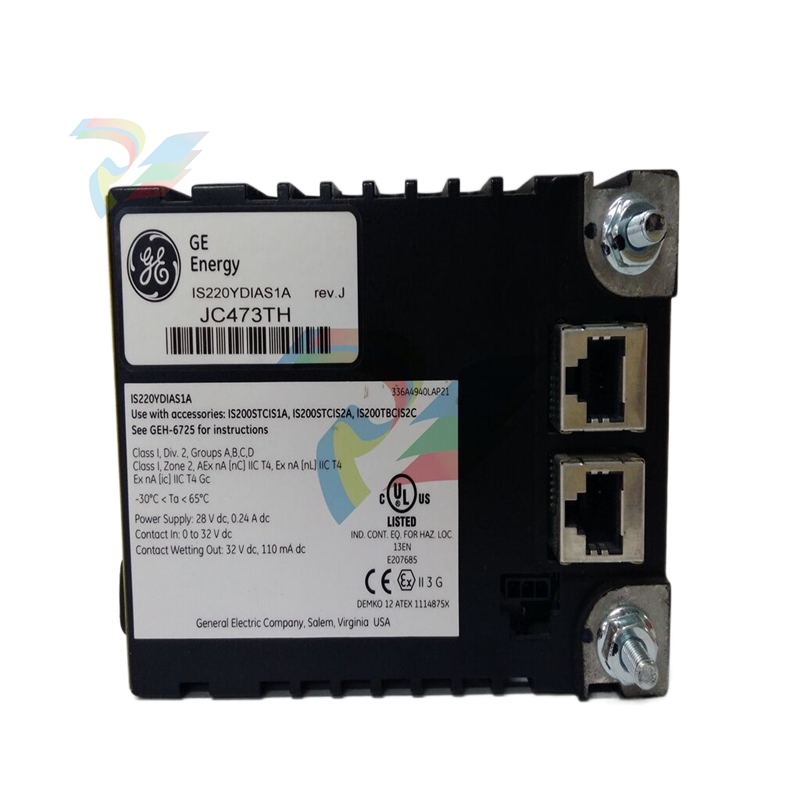

GE IS220YDIAS1A Discrete Contact Input/Output Module

From:GE | author:Mr.Chen | Time :2024-07-10 | 303 view: | Share:

Product Description.

The IS220YDIAS1A is a discrete contact input/output module from General Electric.

This module is designed for gas and steam industrial control in the Mark VIe Speedtronic control system.

The Mark VIe was the last Speedtronic system designed by GE and was one of a series of industrial control systems marketed under the Speedtonic name.

The IS220YDIAS1A is part of the Mark IVe control system or Mark VIeS functional safety system.

As an I/O block, it is designed to be plugged into specific terminal blocks such as the IS200STCIS1A and 2A, IS400STCIS1A or 2A or IS400TBCIS2C.

The IS220YDIAS1A has an on-board power supply with a nominal voltage of 28.0 VDC.

The contact inputs and contact wetted outputs have a maximum nominal voltage of 32 VDC.

The IS220YDIAS1A has both UL and CE approvals. It can be used in both hazardous and non-hazardous locations.

Hazardous location use ratings can be found in documents such as GE's GEH-6725.

This I/O module is designed for use in ambient conditions from -35 to 65 degrees Celsius.

The IS220YDIAS1A is a well-designed module that can be easily mounted on the IS230 terminal board.

The simplicity of installation and availability of documentation make this module ideal for most applications.

Numerous indicator LEDs on the front of the module allow the user to read the status of the IS220YDIAS1A discrete input module.
