Hitachi Energy FOX605 Full support for native Ethernet and MPLS-TP

From:Hitachi | author:Mr.Chen | Time :2025-12-24 | 18 view: | Share:

Additional benefits:

• Cost-efficient solution with a comprehensive feature set ideal for the first mile and access applications

• Stepwise introduction of Ethernet/MPLS-TP based applications in operational networks

• Secured data traffic in packet-switched networks

• Reliable data transport under any network circumstance

• Time and phase synchronization through the WAN

• Utility-grade design with fanless operation for deployment in harsh environments

• Fully interoperable with FOX family

Features

• Full support for native Ethernet and MPLS-TP

• Full synchronization solution according to IEEE1588v2 / SyncE

• Different types of clock in/out

• Complete circuit emulation solutions based on SAToP

• L2 based secured transmission on at least two trunk lines (authentication & full/partial encryption)

• MTBF > 20 years

• High-temperature temperature

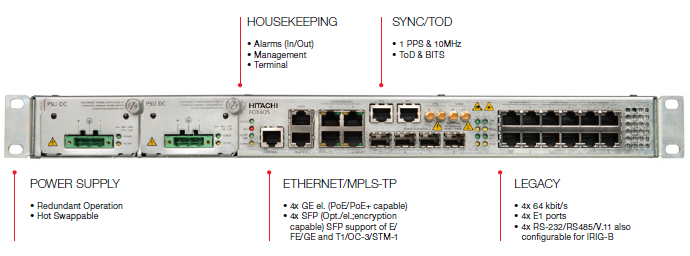

• Flexible connectivity:

8x GBE ports (4 el. + 4 SFP & 4 el. wherefrom two with PoE highly desirable (2x 15W))

4x E1 ports

4x 64 kbit/s

4x RS-232 / RS485

ToD, BITS, 1 PPS, 1.5/2/10MHz Sync Interfaces

Alarm and management interfaces

• Redundant power supply (-48VDC)

• Combination of MPLS-TP (network side) and traditional interfaces (user side) in one device
