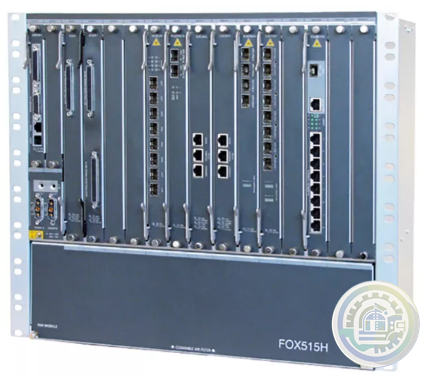

Hitachi Energy FOX515H High capacity backbone platform

Hitachi Energy's FOX515H is a state-of-art utility multiplexer, scalable from DS0 up to

multiple STM-64. The FOX515H supports multiple rings for capacities up to STM-64.

and Ethernet over SDH for pushing packet data over TDM fibers.

Its non-blocking DXC’s allow traffic grooming at 64kbps-level as well as cross-connecting

at VC-12/VC-3/ VC-4.

Key highlights

• Highly scalable

• Compact and robust design

• Extensive protection mechanisms

Overview

The product you are looking for is not available anymore. For more information,

you can contact us by clicking on the Contact button at the bottom of the page.

FOX515H is a highly scalable device, which allows growing backbone capacities

from STM-1 up to STM-64 for the transport of TDM- as well as of Ethernet-traffic.

This very compact FOX-device provides extensive protection mechanisms such as

HW-protection for MPU and tributaries (two groups 1:N, N=1-5) and the full set

of traffic protection methods like MSP, SNCP and/or 2 / 4-fiber MS-SPring for

SDH-connections.

The fully redundant network element supports all SDH-traffic protection schemes

including 2/4-fibre MS-Spring. All optical ports are XFP / SFP based.

Fully integrated and managed boosters / preamplifiers / equalizers enable highly

flexible and reliable long-haul connections, without the need for additional external

devices. The robust mechanical and EMC-design including the distributed power

supply concept of FOX515H are optimized to cope with harsh environments which

are typical for utility applications. The mechanical, electrical and EMC / safety

performance of FOX515H is fully type-tested by an independent, certified Swiss

Test-lab. Most interfaces are provided with multirate SFP/XFP cages enabling each

individual port to have a different configuration with a wide variety of optical

wave-lengths for WDM, connectors and available ranges.

The integrated space-optimized optical boosters and amplifiers meet the frequent

utility requirement for long, repeater less spans.

FOX515H offers various types of Main Processing Units (MPUs), comprising the

system-controller, the clock & synchronization functionality and a non-blocking

cross-connect (DXC). For efficient network design and traffic grooming,

the DXC even allows to cross-connect at DS0 (64kbps) level.

If equipped redundantly, the hot swappable MPU’s work in main/ standby protection mode.
