Prosoft AN-X2-SQD EtherNet/IP™ to Square D® Remote I/O Gateway

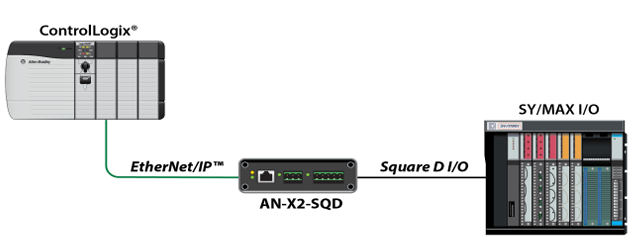

The EtherNet/IP™ to Square D® Remote I/O gateway allows an Allen

Bradley® Programmable Automation Controller (PAC) to control Square

D® Remote I/O devices. The gateway minimizes the extended downtime

required for upgrading legacy SY/MAX control systems by allowing a

phased migration. Once the new PAC is commissioned, the legacy I/O

can be upgraded one module or one rack at a time as scheduled

downtime is available.

Features

 The auto configuration feature maps your existing Square D® Remote

I/O points into the PAC controller tags allowing for

simplified integration and reduced configuration time. The gateway also

supports offline configuration through a .CSV file

 EtherNet/IP™ diagnostic data can be mapped into PAC memory making

it available directly to an HMI or SCADA system

reducing troubleshooting time

 Transfers Square D I/O data via EtherNet/IP™ I/O connections for

real-time control

 Multiple EtherNet/IP™ IO connections allow you to set different RPIs for

I/O data and diagnostic data, allowing you to optimize

your Ethernet bandwidth

 MicroSD card is used for storing configuration files for disaster recovery
