A-B 1747-ASB Configuring the Module Remote I/O Adapter Module

Configuring the Module

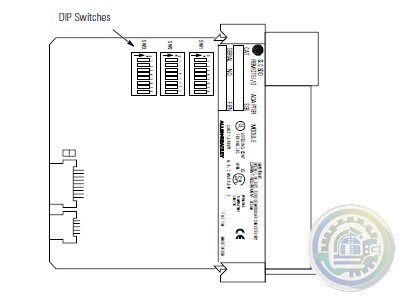

The 1747-ASB module parameters are configured by three DIP switches, shown below.

Configuration Parameters

The DIP switches allow you to configure the following items:

• Starting Logical Rack Number (Logical Rack) - is the 1747-ASB module’s

starting logical rack number in the scanner’s image.

• Starting Logical Group Number (Logical Group) - is the 1747-ASB

module’s starting logical group number within the scanner’s image.

• Baud Rate (Baud Rate) - is the 1747-ASB module’s RIO link communication

rate. The baud rate must be the same for all adapters on the RIO link.

• Primary/Complementary SLC Chassis (PRI/COMP) - determines

whether the 1747-ASB module appears to the scanner as a primary or

complementary chassis.

• Adapter Image Size (IMAGE SIZE) - indicates the I/O image size to be

reserved for the adapter. It can be any size between 2 and 32 groups in

2 logical group increments.

• Hold Last State (HLS) - determines whether the discrete output modules

are held in their last state when:

– RIO link communication with the 1747-ASB module is lost.

– The scanner inhibits the 1747-ASB module.

– The scanner sends Reset, Adapter Decide commands to the 1747-ASB module.

• Processor Restart Lockout (PRL) - determines whether the 1747-ASB

module automatically resumes RIO link communications if communication is

lost and then restored.

• Link Response Time (RESP) - selects restricted or unrestricted RIO link

response time.

• Last Chassis/PLC-3 Backup (LAST CHA) - When the 1747-ASB module is

used with a PLC-2 or PLC-5, this switch indicates to the scanner that the

1747-ASB module is the last adapter mapped into the 1747-ASB module’s

highest logical rack. When using a PLC-3 processor, the switch determines

whether the 1747-ASB module supports the PLC-3 backup function.

• Addressing Mode (ADDR MODE) - determines the 1747-ASB module’s

remote chassis and remote expansion chassis addressing mode. 2-slot,

1-slot, and 1/2-slot are available.

• Specialty I/O Mode (SP MODE) - determines whether the 1747-ASB

module discretely maps or block transfer maps specialty I/O modules in its

remote chassis and remote expansion chassis.

• I/O Module Keying (KEY) - determines if the 1747-ASB module saves its

current I/O module and DIP switch configuration to its non-volatile memory,

or if the 1747-ASB module compares the current I/O module and DIP switch

configuration to the one saved in its non-volatile memory.

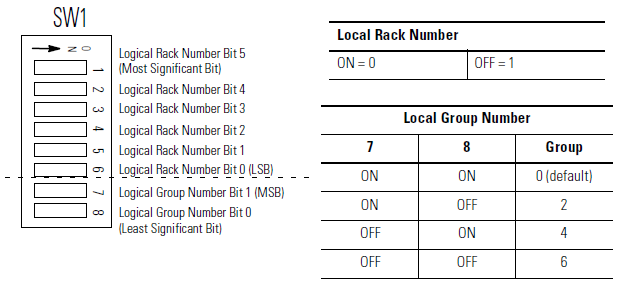

Dip Switch Settings

IMPORTANT The ASB module can be configured as any logical rack number

from 0 to 77 octal. Rack numbers are determined by setting

switches SW1-1 through SW1-6, with ON equivalent to logical 0

and OFF equivalent to logical 1. Then, interpret this 6-bit binary

value as octal with SW1-6 as the least significant bit (LSB).
