Eaton MTL fieldbus displays

Overview

Certifications and compliances

• MTL BA-4xx intrinsically safe versions have ATEX, FM, cFM and IECEx intrinsically

safe certification and comply with the Fieldbus Intrinsically Safe Concept FISCO

For applications in Zone 2 the BA414NDF has ATEX and IECEx Type nL approval

and is FNICO compliant.

• MTL BA-6xx versions are designed for general purpose safe area applications.

Please refer to each version's datasheet in the resources section for the complete

listing of product certificaitons and compliances

Design features

• FOUNDATION fieldbus™ H1 and Profibus PA versions

• Displays upto 8 fieldbus process variables

• General purpose and intrinsically safe versions

• ATEX Gas & Dust, FM and IEC Ex certifications

• FISCO compliant intrinsically safe version

Standard materials

• MTL BA-xx4 field mounted versions: IP66 glass reinforced polyester (GRP)

enclosure with a toughened glass window

• MTL BA-xx8 panel mounted versions: Non-metallic enclosure with an IP66 front

instrument panel

Eaton supplies the widest range of Crouse-Hinds series MTL fieldbus displays from

8-variable to cost effective single-variable versions, field and panel mount variants,

safe and hazardous area versions as well as FOUNDATION fieldbus™ H1 and Profibus

PA versions. All versions are bus powered to simplify installation.

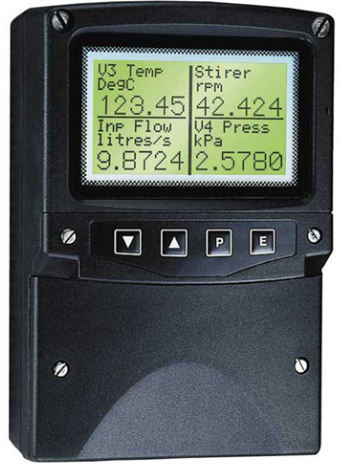

The 8-variable BA-x8x model provides a large 86 x 45 mm back-lit display with 9

standard screen options displaying 1 to 4 variables, measurement units and tags

as well as bar graphs. The operator can select the displayed screen via the front

panel push-buttons, or these buttons may be disabled. The instrument can be supplied

with six isolated alarm outputs, each of which may be linked to any of the displayed

fieldbus variables. Alarm setpoints can be entered via the front panel push-buttons,

which in turn may be protected by a security code.

Our cost effective MTL BA-x1x model displays a single fieldbus process variable on a

bold five digit display and a 31 segment analogue bargraph. It supports FOUNDATION

fieldbus™ H1 with an Input Selector fieldbus function block which is supported by most

fieldbus hosts.

Field mounted versions are housed in a robust IP66 glass reinforced polyester (GRP)

enclosure with a toughened glass window that may be surface mounted or pipe mounted

using one of the accessory kits.

Panel mounted versions provide IP66 ingress protection from the front, fitting in a standard

72 x 144mm panel cut out.
