Woodward The easYview comes prepared with two basic application modes

 Engineered for Wood ward Power Manage ment controls to save on field engineering

 Two operation modes:

1. miniSCADA: connect multiple controllers to visualize system level performance

2. remoteHMI: detail connections to single controllers

 Connect one easYview to many controllers in miniSCADA mode or one controller

to many easYview in remoteHMI mode

 Achieve considerable customizations by tunables only

 Full customization using a versatile atvise ® SCADA tool

 Offers on-the-fly  configuration with same  security levels as  the connected control

 Simplifies wiring to  the access door and keeps high voltage  connections remote

 Ethernet communication to the connected control

 Personalization by end user

 CE Marked, UL Listed

APPLICATION OVERVIEW

The easYview comes prepared with two basic application modes: a remoteHMI mode and a miniSCADA mode.

 In the remoteHMI mode, the easYview connects to one or more devices via VNC connection and receives

the remote HMI screens of the connected easYgen-XT or LS-6XT devices. Depending upon the easYview screen

size (7’, 10’ or 15’), 1. 2 or 4 different remote HMI screens can be shown simultaneously.

This mode is suitable for detailed connection to a single controller and helps troubleshoot,

commission, parametrize, Alarm/event log etc.

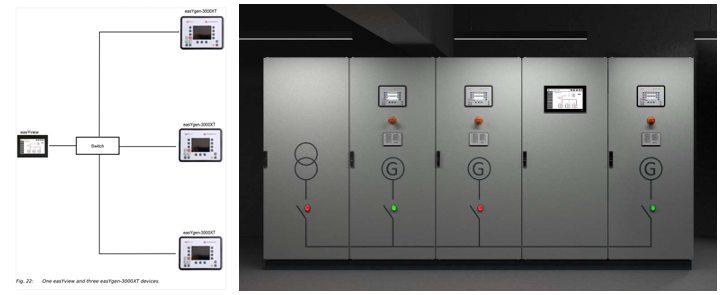

 In the miniSCADA mode, the easYview connects to multiple easYgen-XT or LS-6XT devices via Modbus

TCP connection and offers a plant level visualization. This mode is designed to keep operators informed

during regular operation and maintenance to visualize most frequent / favorite values often from system

perspective without going into details. The miniSCADA mode also has a built-in remoteHMI capability.

Off-the-shelf easYview comes prepared with 3 easYgen-3000XT controllers in island or utility parallel operation.

Tunables are available for customizations such as, deleting an easYgen, changing color of live bus bar,

changing utility source data etc. However, for any major customization such as adding an easYgen-XT,

LS-6XT or 3rd party device, adjusting single line diagram, etc, an atvise® Builder tool is required.
