BAUMULLER b maXX 4000 Modular servo controller

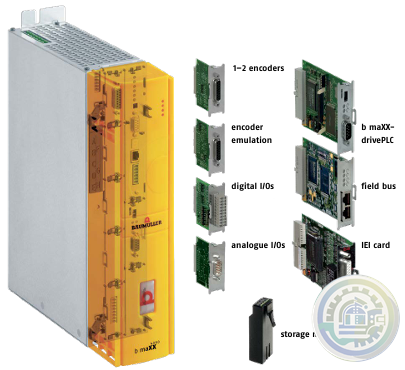

Function and option modules for b maXX 4400

With more than 30 different function and option

modules b maXX can easily be adapted in line with

the individual tasks of the automation and drive

solution.

The individual modules are designed as plug-in

boards and therefore the drive controller no longer

has to be ordered as a preassembled unit. By using

various plug-in boards, the machine manufacturer

can secure a wide variety of functions and configure

the appropriate combinations on their own. In this

way, he can react quickly and flexibly to new

requirements.

This system also ensures that the drive can be

quickly expanded at the user‘s facility. Production

adjustments can be implemented within a short

space of time and with minimal effort.

Encoder Interfaces

• SinCos encoder With hiperface interface and

electronic rating plate. Resolution:

up to several million incr./rev.

• Resolver, resolution: 1024 incr./rev.

• 5 V-square-wave incremental en coder, res.:

(stroke no. x 4) incr./rev.

• SinCos encoder with EnDat® interface

Sine/cosine encoder with EnDat 2.1 and 2.2 inter-

face for single and multiturns, length measure

ment systems and absolute position recognition.

• SinCos encoder with SSI interface

Sine/cosine encoder with SSI standard interface,

with internal and external encoder power supply.

• Incremental encoder emulation 5 V-square-wave

/differential signal, 90° phase shift

Storage module

The parameter storage module contains all the parameters

that are set on the drive controller of the b maXX for all 8

parameter data records and all 16 positioning profiles.

New parameters can be loaded to the drive controller

simply by plugging in the module.

Given that the parameter module is pluggable, a drive can

be replaced during servicing without the need for any

knowledge of the operating software.

Servicing could not be easier.
