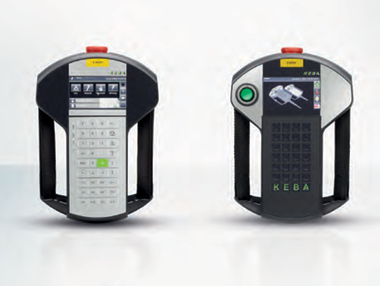

KEBA KeTop T20 eco / techno Handheld terminal

The compact KeTop T20 impresses with excellent er

gonomics and low weight, which facilitates fatigue

free operation and teach-in by both right- and left

handed users for extended periods of time. With the

KeTop T20 eco and the KeTop T20 techno, two versions

with attractive price-performance ratio are available.

KeTop T20 eco

The lightest handheld operating device

The KeTop T20 eco features a tactile membrane keyboard,

weighs less than half a kilogram and offers high perfor

mance for price-sensitive, mass-market applications.

Extensive customization options for visualization, keyboard

and operating elements make possible a wide range of ap

plications. Specially optimized keyboard variants are avail

able for use on CNC machines and for robotics.

KeTop T20 techno

Fully flexible thanks to LCD keyboard

In addition to the low weight, the tactile, freely designable

smart keypad is the highlight of the KeTop T20 techno. Lo

cated behind every single button is an LCD, allowing each

button to be individually customized in appearance and

function.

An unlimited number of individual keyboard layouts - inde

pendent of languages and symbols – are possible thanks

to this innovative technology. Customizing to batch size “1”

can easily be implemented, conventional labeling strips are

replaced.

The dynamic display and hiding of needed and unneeded

buttons enables efficient user guidance. The learning curve

for users is thereby greatly simplified, and possible operat

ing errors are minimized. Keyboard layouts can simply be

adapted to the respective operating situation.

With the KeTop T20 techno, there is also more display area

available for the actual visualization since the operating

fields that are often dynamically displayed on the edge of

screens for button assignment can be depicted using the

LCD keyboard.

The keyboard layouts are created in a user-friendly manner

on a PC in the KeView KeyEdit software using Drag & Drop.
