SPC600K02 ABB Ability™ Symphony® Plus Hardware Selector

The SD Series SPC600 are the newest additions to the Symphony

Plus controller family. SPC600 controller features include; modular

high-density design, low energy consumption, flexible DIN-Rail

column or row mounting, and extreme operating temperature

range (-40 to +70 degC).

The SPC600 controllers also are high-performance process

controllers that support all types of control requirements including

discrete, continuous, sequential and advanced control

applications. SPC600 controllers are capable of executing control

applications that demanding in terms of both data and

computations.

The mounting bases of the SPC600 controllers have (4) RJ45

Ethernet ports PN800A and PN800B for connection to the PN800

Plant Network, EN 2A for connection to an optional SNTP network

that provides precise time synchronization, and EN 2B for

connection to MODBUS TCP networks.

SPC600 supports up to 5.000 Function Blocks, 500

hardwired IO, up to 4 remote IO links. SPC600 is capable of

executing closed-loop control logic for up to 500 process IO in less

than 250 msec.

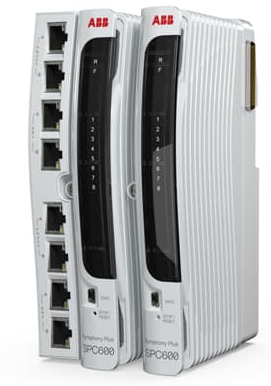

SPC600K02 is a horizontal row mount, redundant controller kit

that includes: 2x SPC600 modules + 1x MB705 base + 2x TER810 bus

terminators.

Features and benefits

• SIMPLE: SPC600 controllers provide time proven solutions optimized for processed control

• SCALABLE: SPC600 is optimized for small control applications of up to 500 process I/O

• SEAMLESS: SPC600 controllers connect directly to SD Series IO over the redundant HN800 IO bus

• SECURE: S+ systems using SPC600 controllers have been certified to Security Level 1 as defined by

IEC 62443

• SPC600 controllers are configured by the S+ Engineering Tool Suite

• SPC600 hardware is designed for optimum communication connectivity (Ethernet, PROFIBUS DP,

IEC 104. etc.)
