Bently Nevada™ Scout™ SCOUT140EX Vibration Data Collector,Analyzer and Balancer

From:Bently | author:Mr.Chen | Time :2025-12-29 | 5 view: | Share:

Description

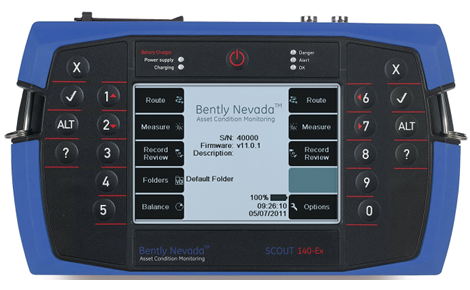

The Bently Nevada™ Scout™ SCOUT140EX Vibration Data

Collector, Analyzer and Balancer is a portable hardware

monitoring device that supports four-channel vibration data

collection, analysis, and balancing. Use the device to collect

data from sensors on a route, for machine-side analysis and

diagnosis, and on-site dynamic balance correction.

The SCOUT140EX is ATEX Zone 2 and IECEx Zone 2 compliant

and safe for hazardous areas. It is both light and rugged. The

neck strap includes an integrated Sensor Keeper that restrains

your sensor while you walk or climb to reach other machines.

The device includes a complete suite of advanced recording

and analysis capabilities, includingtri-axial and6Pack

recordings, coast-down, long time waveform, modal analysis

and cross channel spectrum (ODS).

The SCOUT140EX offers plenty of storage and long battery life.

The device comes with a five year warranty. It works with

System 1 software.

The SCOUT140EX Vibration Data Collector, Analyzer and

Balancer offers the following features:

l Up tofour-channel, simultaneous on-route recordings

l Simultaneous acquisition, two-plane balancing with up

to four sensors

l Unique 6Pack recording system

l DC-coupled sensor support

l Support for acceleration, velocity, displacement, DC coupled,

current and voltage output sensors

l Triax-enabled

l One GB memory plus virtually unlimited spectra and waveform

storage

l Ten hours of battery life

l 12.800 lines of resolution

l 80 kHz Fmax

l Up to four channel time-synchronous averaging with tach input

l Full transient analysis including

Coastdown/Runup and Long Time Waveform

l Modal Impact Testing & Cross Channel Spectrum (ODS)

l Ability to export data in Universal File Format (UFF) for additional

analysis in ODS software such as Vibrant Technology ME' scope

l USB host port for data transfer to external USB memory

l Excellent ergonomics for walk-around data collection

l High contrast, backlit and direct-sunlight readable LCD

l True left and right-handed operation

l Numeric parameter input via keypad with trend and alarm capability

l Sensor cable self-test feature

l Lightweight, rugged IP65 rated case

l Five-year warranty on the instrument hardware

l ATEX and IECEx Zone 2 hazardous location certification

l Field-upgradable Proflash system and free firmware updates for five years

  • Bently CB5G0024 Sensor CableFive meters,green
  • Bently MAGA0063 Laser magneticstand
  • Bently CBL50216 Laser cable Five meters
  • Bently 113M5529-01 Reflective tapeOne roll, 60 cm
  • Bently LASA0315 LaserZone 2 rated
  • Bently 110M8172-012 LEMO-BNC TTLTach/Keyphasor cable
  • Bently 108M4045 SCOUT quick start guide
  • Bently PLEU0229 Europe - Category Cpower plug
  • Bently PLHK0245 Hong Kong/UK Category-G power plug
  • Bently PLAU0228 Australia/New Zealand /China - Category Mpower plug
  • Bently PLSAO241 South Africa/India -Category D power plug
  • Bently PLUS0230 USA/Canada - CategoryA power plug
  • Bently 109M2384-01 Neck strap with SensorKeeper
  • Bently MVBX0250 Reference_Guide
  • Bently 113M5585 Accelerometermagnetic base
  • Bently CBVB0032 carrying bag
  • Bently CBTB0278 SCOUT instrument
  • Bently CBCC0027 or138M7748 Triple BNC adapter
  • Bently CABUO213 Transducer cable
  • Bently 110M8172-012 USB data transfer cable
  • Bently CABB0560 BNC to BNC Cable,1meter
  • Bently 108M4044 AC power adapter
  • Bently ACCLO561 or200350* Right-angledaccelerometer or straight accelerometer
  • Bently ACCLO547 or200350* Straight accelerometer
  • Bently 108M3240 SCOUT140Ex four channel portable data collector
