ABB REU610 Description Voltage Protection RELION® 610 SERIES

From:ABB | author:Mr.Chen | Time :2024-11-15 | 241 view: | Share:

Description

REU610 is a voltage protection relay for system voltage

protection, measuring and supervising in utility and industrial

power systems. REU610 is a member of ABB’s Relion®

protection and control product family and part of its 610

product series. The 610 series includes protection relays for

feeder protection, motor protection and general system voltage

supervision. The plug-in design of the 610 series protection

relays facilitates the commissioning of the switchgear and

enables fast and safe insertion and withdrawal of relay plug-in units.

The protection relay is primarily designed for the overvoltage

protection of power system components, such as busbars,

feeders, power transformers and capacitor batteries. It is also

used for the general power system earth-fault supervision.

Further, the protection relay can be used for undervoltage

protection of motors and overvoltage protection of capacitor

batteries, for initialization of automatic busbar changeover and

disconnecting small power units from the network in case of a

major network disturbance. The 610 series protection relays

are suitable for employment in marine and offshore environments.

The numerical voltage protection relays of the 610 series

support a wide range of standard communication protocols,

among them the IEC 61850, IEC 60870-5-103, DNP3, Modbus,

Profibus, LON and SPA communication protocols.

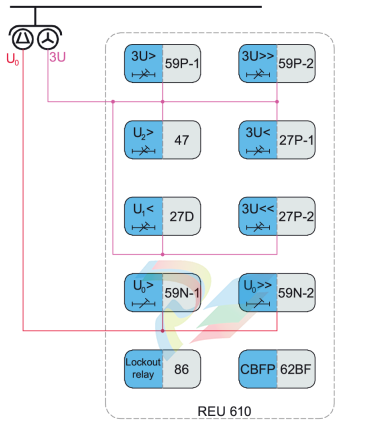

Protection functions

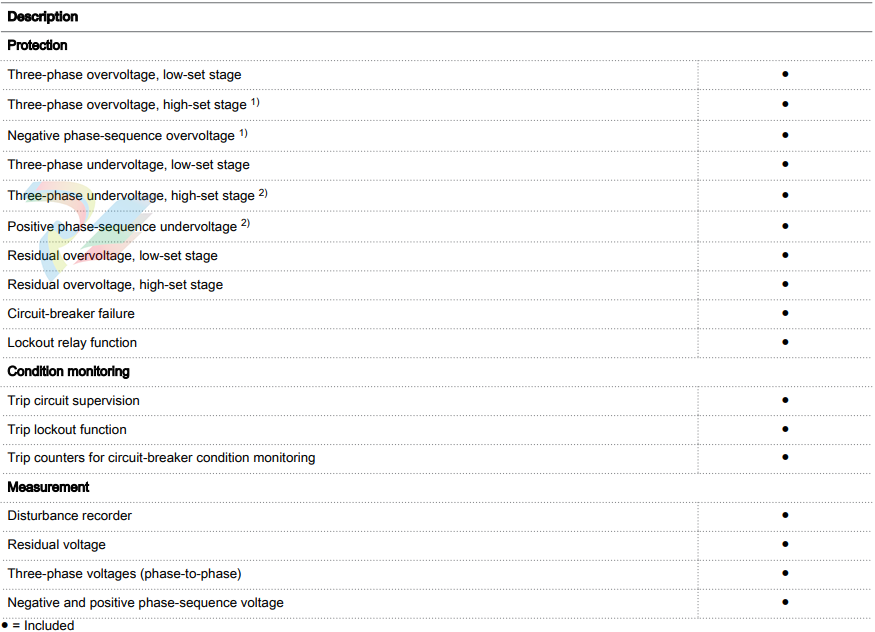

The protection relay offers integrated protection functions including two-stage

overvoltage and undervoltage protection, two-stage residual overvoltage protection,

as well as singlestage negative phase-sequence overvoltage protection and

single-stage positive phase-sequence undervoltage protection.

Measurement

The protection relay physically measures the three phase-tophase voltages and the residual voltage of the power system.

Further, from the phase-to-phase voltages the protection relay

calculates the positive and negative phase-sequence voltages,

the one-minute average phase-to-phase voltage, the average

phase-to-phase voltage for a user-specifiable time frame, the

maximum value of the one-minute average voltage, and the

maximum and minimum phase-to-phase voltage value since last reset.

The values of the voltages measured or calculated can be

accessed locally via the user interface on the protection relay's

front panel, or remotely via the serial communication interface

on the rear panel of the protection relay.

Disturbance recorder

The protection relay is provided with a built-in battery backedup digital

disturbance recorder for four analog signal channels and eight digital signal channels.

The analog channels can be set to record the curve form of the voltages measured.

The digital channels can be set to record external or internal relay

signals, for example the start or trip signals of protection relay's

stages, external blocking or control signals. Any digital relay

signal such as a protection start or trip signal, or an external

relay control signal can be set to trigger the recording.

The recordings are stored in a nonvolatile memory from which the

data can be uploaded for subsequent fault analysis.
