ABB Procontic T200 Automation System

From:ABB | author:Mr.Chen | Time :2024-12-31 | 122 view: | Share:

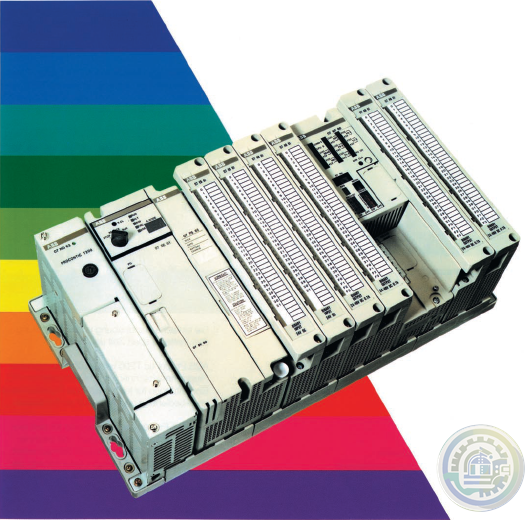

Automation System ABB Procontic T200.

Modular, powerful, decentrally expandable

The ABB Procontic T200 automation system isa modular control system that largely satisfiesthe requirements of today and tomorrow.

Thanks to its rack based architecture and widerange of modules, the ABB Procontic T200 canbe assembled to suit most any application.

The simple handling and planning of thesystem saves time and money.

ABB Procontic T200 programming software islBM-compatible and provides efficient processdisplay, PLC operation, and connection to fieldbuses.

ABB Procontic systems are designed for heavy-duty industrial operation and are distinguishedby their resistance to interference (EMC).

Extensive diagnostic functions of the ABBProconticT200 simplify commissioning andtroubleshooting of the system.

Efficient and easy-to-program serial bussystems connect separately located stations

The ABB Procontic field bus, ZB10, ex-changes process data with the other ABBProcontic systems.

The ABB Procontic T200 bus ZB20 is de.signed specially for data exchange betweenABB Procontic T200 stations, transportingparameters, and downloading programs.

Serial interfaces on the communication processor are also available for transfer ofprograms and signal states to an operatingstation.

An ABB Procontic T200 control consists, in itssimplest form, of a module rack, a central unit,program memory, an input module, an outputmodule, and a power supply unit.

Expansion module racks provide ample roomfor further input and output devices.

Fourcentral units classified according to their ex-pandability and a series of pre-processors andinterface equipment

enable optimum adaptationof the ABB Procontic T200 to the respectivecontrol task.

The T200 can be configured cen-trally (in the immediate vicinity) or decentrally.

Equipment overview

•4 central units per rack, T200 offers a choiceof 4 central units graduated in performancewith the same instruction set

•RAM and EPROM memories with differentmemory capacities

•3 basic module racks in 2, 5 and 8 slotconfigurations

•3 expansion module racks with 4, 7 or 10 l/0slots

•Descrete input and output devices availablein common voltages

•Analog input and output devices for voltageand current

•Input devices for temperatures

•Interrupt input device, fast counter,positioning device

•Modules for central and decentral coupling ofexpansion module racks

•Interface equipment

•Couplers for the ABB Procontic field busZB10, ABB Procontic T200 bus ZB20, andPROFIBUS

•High-performance industrial computer
