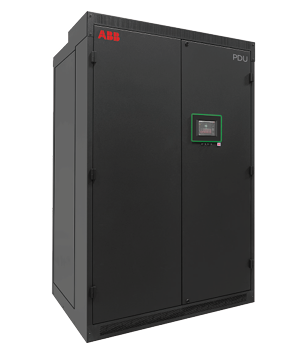

ABB Cyberex® Power Distribution Unit (PDU) Power distribution system

Cyberex® Power Distribution Unit (PDU) Power distribution system

Data centers are the essential ingredients that enable individual businesses to have an

electronic presence on the Internet. Reliable uninterrupted power is critical to the mission

of any organization’s data center.

ABB embraces the challenge to develop solutions

that meet the individual needs of the modern data

center while maintaining our heritage of offering

the highest reliability on the market today.

The Cyberex® PDU offers the most reliable and flexible

power distribution product on the market today with

almost unlimited configurations of panelboards and

sub-feed breakers to meet every load requirement.

Three cabinet designs support ratings up to 800kVA.

Our advanced Cyberex® PowerView circuit

management solutions enable end users the ability to

monitor and manage any combination of individual

branch circuits or sub-feed circuits from a single hardware platform.

With several different standard sidecar options,

the Cyberex® PDU offers the benefit of flexibility to

system designers, installers, and owners alike.

Take your distribution equipment to the next level by

managing your critical loads at the individual branch

circuit level. Rely on Cyberex® PowerView circuit

management solutions to monitor and alert your

staff of potential problems before they occur.

Understanding load profiles is the key to proactively

managing your data center distribution system and

avoiding unnecessary downtime.

•   Branch circuit management – Up to six (6) 42 circuit panelboards (252 circuits)

•   Sub-feed circuit management – Up to (65), 3-wire or (60), 4-wire sub-feed breakers

•   Main-feed circuit management – Up to four (4)

sources in multi-fed RPPs can be monitored: phases, neutral and ground

Key features

•   Revenue grade metering accuracy (<=1% error)

•   Complies with ANSI C12.1 standards

•   Ability to customize main breaker, sub-feed breaker,

panelboard, or branch circuit breaker names and/or numbers

•   Modular chassis design allows for simple additions for future expansions

Advanced communication

•   Communicate valuable system data to building management systems (BMS) or local display

•   Protocols available: Modbus RTU, Modbus TCP, and web server

Monitor system parameters including:

•   Voltage-current (RMS)

•   MIN current

•   MAX current

•   kW (power)

•   kVA-load

•   Power factor (PF)

•   Total harmonic distribution (THD)

Configure system warnings and alarms including:

•   Over/under current

•   Over/under voltage

•   Over kW

•   Over THD

•   Low PF

•   Phase loss
