Parker Variable Speed Drives - AC15 Series

From:Parker | author:Mr.Chen | Time :2024-06-25 | 397 view: | 🔊 Click to read aloud ❚❚ ▶ | Share:

Overview

Description

The AC15 Compact Drive is a simple to use, reliable and economical solution for every-day motor control applications that require speed or torque control in the power range of 0.37 kW to 30 kW (0.5 to 40 HP).

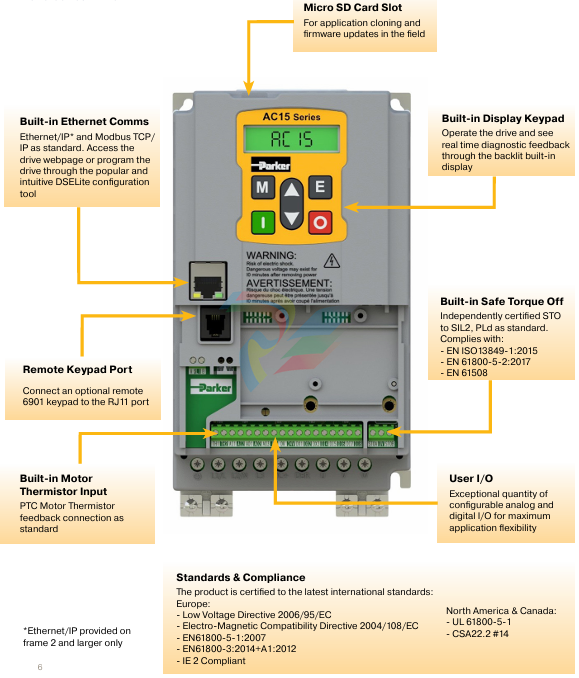

With compact dimensions and features normally only associated with higher specification drives, including Safe Torque Off, Ethernet communications,

sensorless vector mode for control of both Permanent Magnet (PMAC) and AC induction motors and a full 150 % overload for 1 minute, AC15 provides

an optimized solution for OEM machine builders looking for a compact, cost-effective drive without compromising on performance.

Simplicity

AC15 is designed to reduce the time and effort required to install, setup and commission through it’s easy to use integrated keypad and application

macros, or the powerful DSE Lite software tool and rich function block set. Minimal wiring requirements and easily accessed terminals make AC15 quick and

easy to install. Auto-tuning sensorless vector mode takes AC15 beyond simple V/Hz control allowing users requiring greater dynamic speed or torque control for their application to benefit from the drive’s enhanced speed and torque accuracy.

Reliability

Proven technology and manufacturing techniques ensure AC15 has been engineered and built to deliver consistently outstanding levels of performance day in, day out, ensuring maximum uptime and productivity.

Thanks to its conformally coated PC boards, AC15 is capable of withstanding class C3 environments, allowing you to operate AC15 with the utmost confidence in more applications.

Applications

AC15 provides a straight-forward approach to general purpose industrial motor control applications across a wide range of industries, giving users the benefits of the inherent energy-saving properties of using a variable speed drive, as well as the improved reliability and extended service life benefits associated with smoother starting and stopping of regularly cycling loads.

Typical applications for AC15 include…

• Conveyor

• Centrifuge

• Fans

• Mixers

• Packaging Machines

• Textile Machines

• Strapping Machines

• Labelling Machines

• Industrial Washing Machines

• Machine Tool Spindles

• Roller Doors
