Prosoft PLX82-EIP-PNC EtherNet/IP™ to PROFINET Controller Gateway

The EtherNet/IP™ to PROFINET Controller Gateway allows you to

connect two giants of industrial automation through secure, high-speed

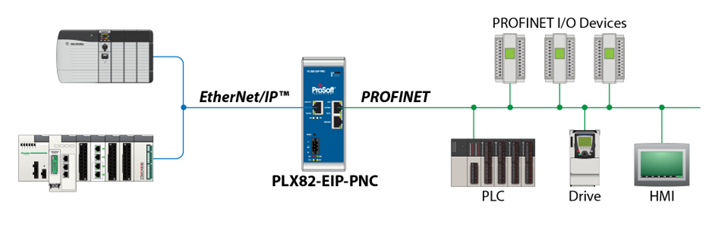

communications. The gateway provides EtherNet/IP-based controllers the

ability to control up to 36 PROFINET RT devices such as field I/O, drives,

HMIs, and controllers.

The PLX82-EIP-PNC gateways are stand-alone DIN-rail mounted units

that provide two Ethernet ports for communications, remote configuration,

and diagnostics. The onboard SD Card slot (SD card optional) is used for

storing configuration files that can be used for recovery, transferring the

configuration to another gateway, or general configuration backup.

Features

 Multiple I/O connections allow for high-speed control for large PROFINET I/O systems

 Isolated Ethernet ports allow devices on different protocols to be on different subnets

 ODVA-approved

 PROFINET v2 certification with PROFINET class A compliance

 Field-tested with multiple PROFINET devices from multiple vendors

 Remotely view and diagnose EtherNet/IP and PROFINET networks

 Embedded EDS AOP provided to allow for seamless integration to Studio 5000 and RSLogix™ 5000

 Using EtherNet/IP I/O connections, no ladder programming is required
