Prosoft PLX32-EIP-MBTCP-UA EtherNet/IP™ to Modbus® TCP/IP to OPC UA Server Gateway

Need to get data from your EtherNet/IP™ or Modbus® TCP/IP-based devices to

your OPC UA clients to be analyzed so you can reduce your operating costs or

increase your production?

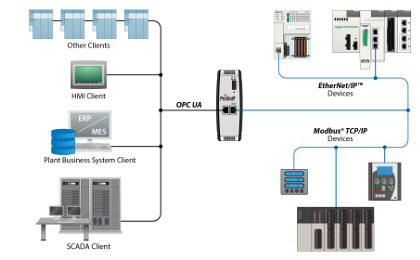

ProSoft Technology’s EtherNet/IP to Modbus TCP/IP to OPC UA Server

communication gateway allows high-speed tri-directional data transfers between

EtherNet/IP PACs and Modbus TCP/IP devices, while also providing an OPC UA

Server connection.

The Modbus TCP/IP driver features multiple, simultaneous client and server

connections for faster data transmission. For simplified integration and reduced

commissioning time for Rockwell Automation® EtherNet/IP-enabled PACs, an

EDS AOP is provided.

The highly reliable and secure OPC UA Server supports 10 simultaneous OPC

UA sessions that provide access to EtherNet/IP and Modbus TCP/IP data from

the respective networks.

Features

 Two separate Ethernet ports allow EtherNet/IP and Modbus TCP/IP to reside

on a different subnet than the OPC UA Server.

 All three protocols operate independently and simultaneously while accessing

common process data.

 Data prioritization: Multiple EtherNet/IP I/O connections allow for different

RPIs for status and/or control data.

 Includes an embedded EDS Add-On Profile, allowing for simplified integration

and reduced commissioning time.

 Gateway includes an SD card slot (SD card optional) for storing configuration

files. This can be used for disaster recovery.
