Prosoft PLX31-MBTCP-MBS4 Modbus® TCP/IP to Modbus® Serial Four-Port Gateway

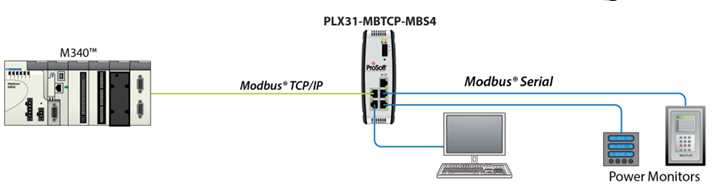

ProSoft Technology’s Modbus® TCP/IP to Modbus® Serial four-port Serial gateway

allows high-speed bi-directional data transfers between Modbus® TCP/IP-enabled

PACs and Modbus® Serial devices. Modbus® Serial devices are widely used in nearly

every industry and include SCADA systems and Power Monitors. Four Serial ports

allow for connectivity of up to 400 Modbus® Serial devices, reducing the amount of

gateways required for your application.

In addition, the gateway includes several features that allow for simplified integration,

reduced commissioning time and optimized performance.

Features

 Gateway includes a SD card slot (SD card optional) for storing configuration files.

This can be used for disaster recovery.

 Four Serial ports allow for connectivity of up to 400 Modbus® Serial devices,

reducing the amount of gateways required for your

application.

 Supports up to 20 simultaneous client & server connections, allowing for faster

communication between devices such as HMIs,

SCADA systems, power monitors and flow computers, among others.

 ProSoft Discovery Service: This utility allows your PC to see the gateway and change

its default IP address without being on the

same subnet as the module.

 Secure module configuration via module switch (v1.04 and greater).

 Up to 10.000 16-bit registers can be used to exchange large amounts of data.
