Prosoft PLX31-EIP-MBS EtherNet/IP™ to Modbus® Serial Communication Gateway

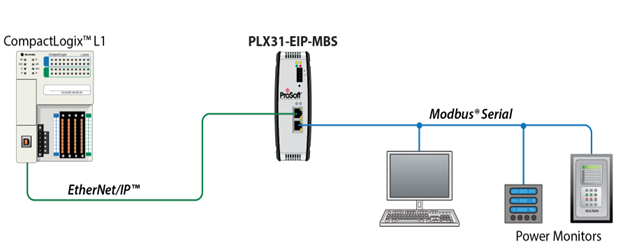

ProSoft Technology’s EtherNet/IP™ to Modbus® Serial communication gateway

allows high-speed bi-directional data transfers between EtherNet/IP™ PACs or

devices and Modbus®-enabled PACs or devices.

EtherNet/IP™ PACs include Rockwell Automation® ControlLogix® and

CompactLogix™, as well as several Schneider Electric® controllers. Modbus® Serial

devices are widely used in nearly every industry and include SCADA systems and

Power Monitors.

The gateway includes several features that allow for simplified integration, reduced

commissioning time and optimized performance.

Features

 Data prioritization: Multiple I/O connections allow you to set RPIs for status and/or

control data, optimizing Ethernet bandwidth.

 Includes an embedded EDS Add-On Profile, allowing for simplified integration and

reduced commissioning time.

 Includes a SD card slot (SD card optional) for storing configuration files.

This can be used for disaster recovery.

 ProSoft Discovery Service: This utility allows your PC to see the gateway and change

its default IP address without being on the same subnet.

 Secure module configuration via module switch (v1.04 and greater).

 Up to 10.000 16-bit registers can be used to exchange large amounts of data.
