Prosoft MVI69L-MBTCP Modbus TCP/IP Lite Communication Module

The MVI69L-MBTCP Modbus TCP/IP module is ideal for smaller

applications that utilize the CompactLogixTM L2 controllers. The module

has an Add-on Profile and an Add-on Instruction to reduce

commissioning time.

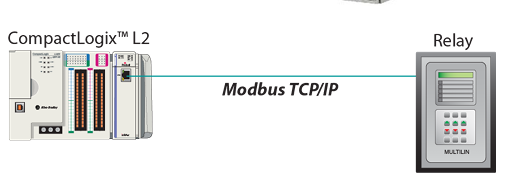

The MVI69L-MBTCP has a single Ethernet port for diagnostic and

application data.  It supports both Client and Server connectivity to

interface with a variety of devices using the Modbus TCP/IP Protocol.

Features

 Supports CompactLogix processors with 1769 I/O bus capability version

16 and greater (MicroLogix 1500 not supported)

 Add-on Instruction creates UDTs, providing logical definitions for I/O,

status, and control data

 Add-on Profile support, improving integration in the CompactLogix System

 Diagnostic data available in processor controller tags, enabling decisions to

be made based upon node health

 Configuration backed up in CompactLogix project (ACD file)

 Module acts as a co-processor reducing impact to PLC scan time

 Supports up to 240 words of I/O data

 Supports up to 10 Client connections and 2 Server connections

(1 each for Server Ports 502 and 2000)

 Supports Enron and Daniel style Floating point data implementation
