Prosoft MVI69E-MBS Modbus Serial Enhanced Communication Module

The MVI69E-MBS Modbus Serial module for CompactLogix™ is

designed for all applications requiring Modbus Serial connectivity.

This module comes with an Add-on Profile and an Add-on Instruction

to reduce commissioning time. The MVI69E-MBS has two serial

ports and can support both Master and/or Slave connectivity to

interface with a variety of devices using the Modbus Protocol.

Features

 Supports CompactLogix processors with 1769 I/O bus capability

version 16 and greater (MicroLogix 1500 not supported)

 Add-on Instruction creates UDTs, providing logical definitions for

I/O, status, and control data

 Add-on Profile support, improving integration in the CompactLogix

System

 Diagnostic data available in processor controller tags, enabling

decisions to be made based upon node health

 Module configuration backed up in CompactLogix project (ACD file)

 Module acts as a co-processor reducing impact to PLC scan time

 Supports up to 10.000 words of data

 Supports up to 250 Modbus Commands per port

 Each port can be configured individually as a Modbus Master or Modbus

Slave device

 Supports Enron and Daniel-style Floating point data implementations

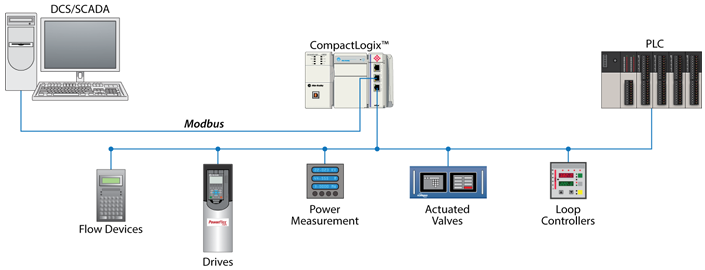

 Suitable for SCADA and field device interface applications
